Technical Details
| Average Rectified Current | 1A |
| Capacitance | 10pF |
| Case/Package | SMA |
| Current Rating | 1A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Forward Current | 1A |
| Forward Voltage | 900mV |
| Height | 2.1mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.80 |
| Introduction Date | 2002-09-27 |
| Lead Free | Contains Lead |
| Length | 4.6mm |
| Lifecycle Status | Obsolete |
| Max Forward Surge Current (Ifsm) | 30A |
| Max Operating Temperature | 150°C |
| Max Output Current | 1A |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Max Reverse Voltage (DC) | 100V |
| Max Surge Current | 30A |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Output Current | 1A |
| Peak Non-Repetitive Surge Current | 30A |
| Peak Reverse Current | 5µA |
| Polarity | Standard |
| REACH SVHC | No |
| Recovery Time | 25ns |
| Reverse Recovery Time | 25ns |
| Reverse Standoff Voltage | 100V |
| Reverse Voltage (DC) | 100V |
| RoHS | Non-Compliant |
| Termination | SMD/SMT |
| Voltage Rating (DC) | 100V |
| Weight | 64.013223mg |
| Width | 2.92mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

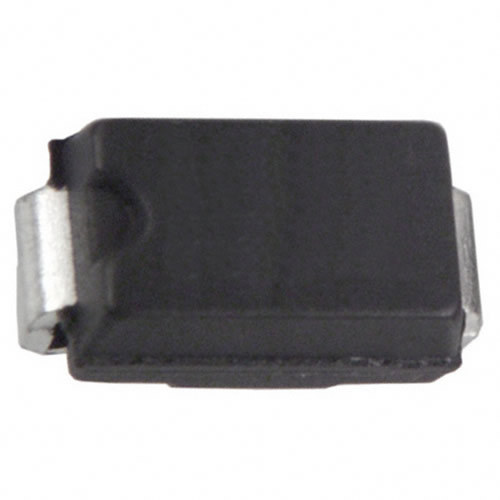

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Rectron | Production | ||
| Taiwan Semiconductor | Production | ||
| Vishay | Obsolete | ||
| Lite-On | Production | ||
| Vishay | Production | ||
| Vishay | Production | ||
| Vishay | Production | ||
| Diotec | Production | ||
| Vishay | Production | ||
| Vishay | Production |
