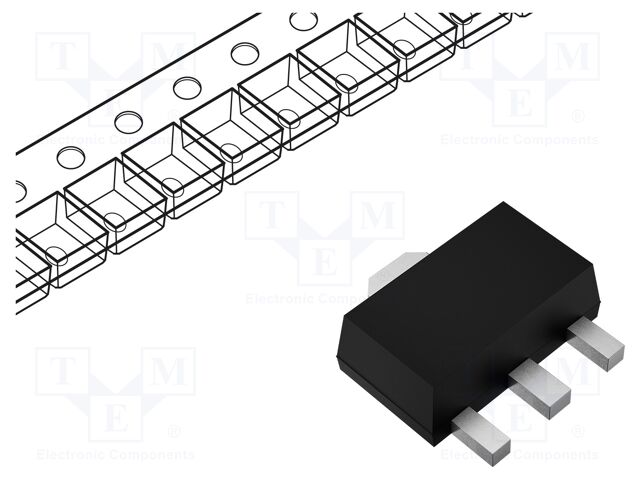

FCX493TA - Diodes Inc.
Bipolar (BJT) Single Transistor, NPN, 100 V, 1 A, 1 W, SOT-89, Surface Mount
Technical Details
| Case/Package | SOT-89 |
| China RoHS | Compliant |
| Collector Base Voltage (VCBO) | 120V |
| Collector Emitter Breakdown Voltage | 100V |
| Collector Emitter Saturation Voltage | 600mV |
| Collector Emitter Voltage (VCEO) | 100V |
| Continuous Collector Current | 1A |
| Country of Origin | Mainland China |
| Current Rating | 1A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Frequency | 150MHz |
| Gain Bandwidth Product | 150MHz |
| Height | 1.5mm |
| hFE Min | 20 |
| Introduction Date | 1996-06-01 |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 100V |
| Max Collector Current | 1A |
| Max Frequency | 150MHz |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 1W |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Polarity | NPN |
| Power Dissipation | 1W |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080 |
| Transition Frequency | 150MHz |
| Voltage Rating (DC) | 100V |
| Weight | 51.993025mg |
| Width | 2.5mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
