S1B-13-F - Diodes Inc.

Diode Standard Recovery Rectifier 100V 1A 2-Pin SMA T/R

Technical Details

Average Rectified Current	1A
Capacitance	10pF
Case/Package	SMA
China RoHS	Non-Compliant
Contact Plating	Tin
Country of Origin	Mainland China
Current Rating	1A
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Forward Current	1A
Forward Voltage	1.1V
Height	2.4mm
Harmonized Tariff Schedule (HTS) Code	8541.10.00.80
Introduction Date	2003-06-20
Lead Free	Lead Free
Length	4.6mm
Lifecycle Status	Production
Max Forward Surge Current (Ifsm)	30A
Max Junction Temperature (Tj)	150°C
Max Operating Temperature	150°C
Max Output Current	1A
Max Repetitive Reverse Voltage (Vrrm)	100V
Max Reverse Voltage (DC)	100V
Max Surge Current	30A
Min Operating Temperature	-65°C
Mount	Surface Mount
Number of Elements	1
Number of Pins	2
Number of Terminals	2
Output Current	1A
Packaging	Cut Tape
Peak Non-Repetitive Surge Current	30A
Peak Reverse Current	5µA
Polarity	Standard
Radiation Hardening	No
REACH SVHC	No
Recovery Time	1.8µs
Reverse Recovery Time	3µs
Reverse Standoff Voltage	100V
Reverse Voltage	100V
Reverse Voltage (DC)	100V
RoHS	Compliant
Schedule B	8541100080, 8541100080\|8541100080, 8541100080\|8541100080\|8541100080, 8541100080\|8541100080\|8541100080\|8541100080
Termination	SMD/SMT
Voltage Rating (DC)	100V
Weight	64.013223mg
Width	2.92mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Diodes Inc. S1B-13-F | Future Electronics

Future Electronics

Datasheets

Lifecycle Status Indicator

Production

Symbol

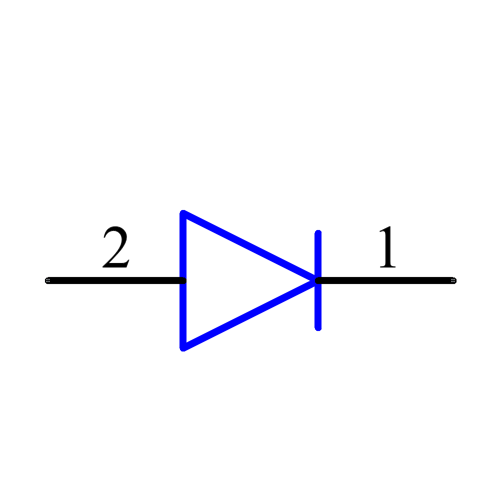

S1B-13-F Symbol - Diodes Inc.

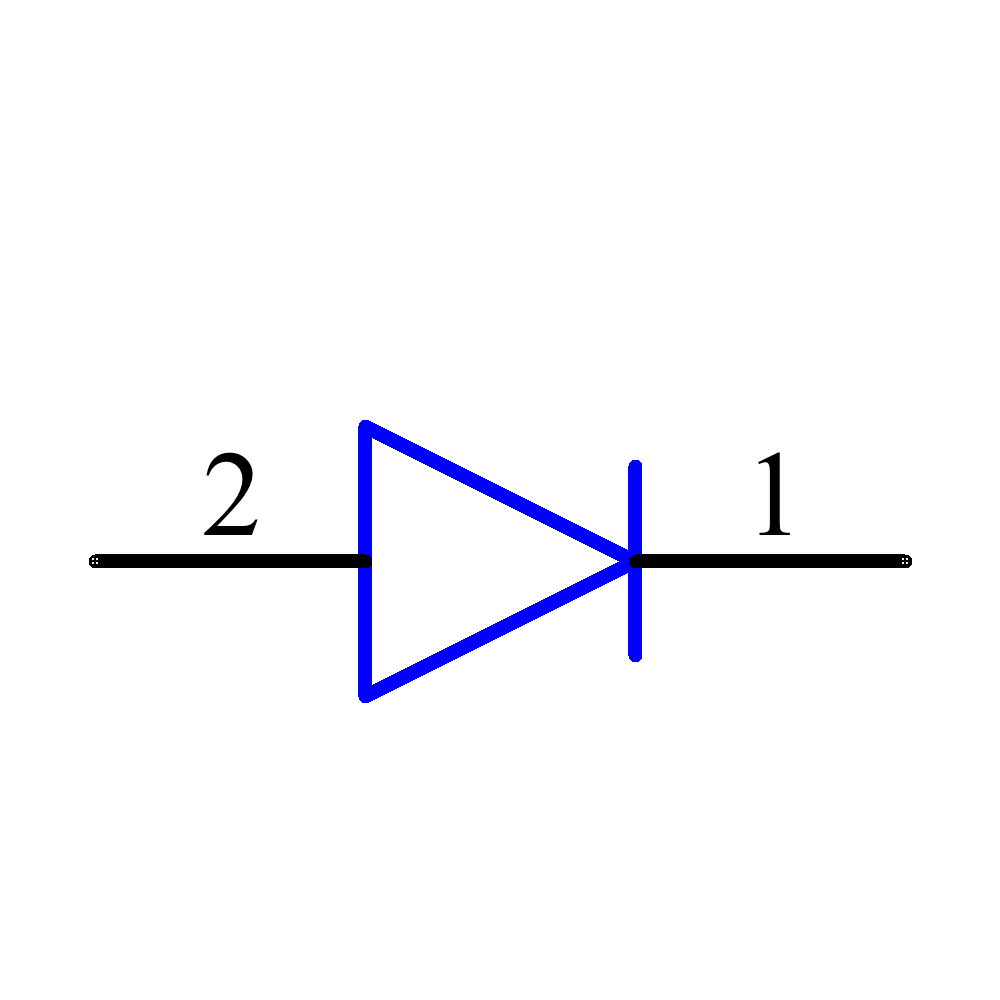

S1B-13-F Symbol - Diodes Inc.

S1B-13-F Symbol - Diodes Inc.

S1B-13-F Symbol - Diodes Inc.

‹ ›

Footprint

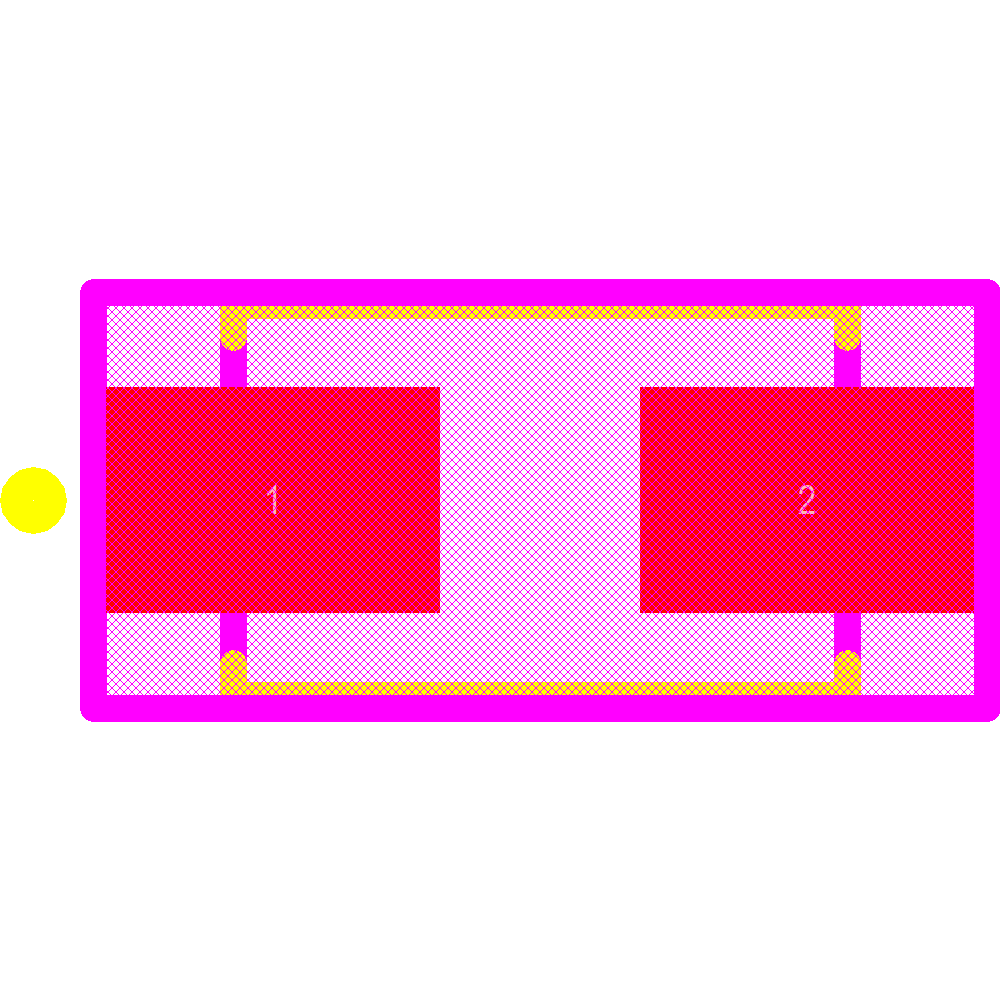

S1B-13-F Footprint - Diodes Inc.

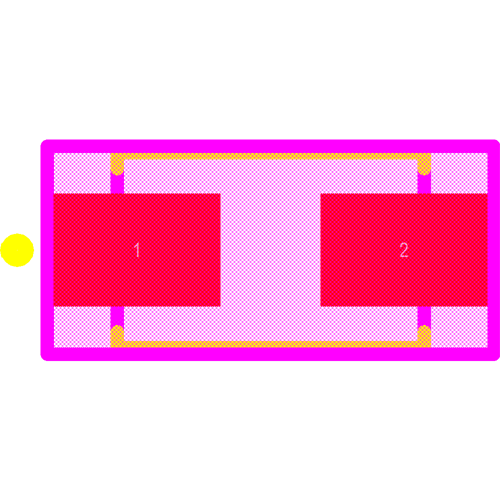

S1B-13-F Footprint - Diodes Inc.
