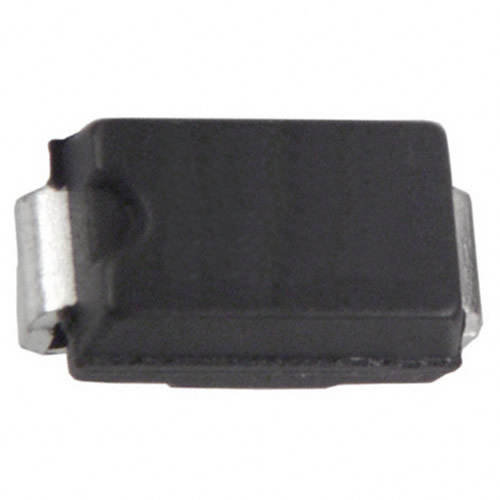

SMAJ5.0CA-13 - Diodes Inc.
Trans Voltage Suppressor Diode, 400W, 5V V(RWM), Bidirectional, 1 Element, Silicon
Technical Details
| Breakdown Voltage | 6.8V |
| Case/Package | SMA |
| Clamping Voltage | 9.2V |
| Composition | Zener |
| Height | 2.3mm |
| Lead Free | Contains Lead |
| Leakage Current | 1.6mA |
| Length | 4.6mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 7.25V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 1W |
| Max Surge Current | 40A |
| Min Breakdown Voltage | 6.4V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 5V |
| Packaging | Tape & Reel (TR) |
| Peak Pulse Current | 43.5A |
| Peak Pulse Power | 400W |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Power Rating | 400W |
| Reverse Breakdown Voltage | 6.4V |
| Reverse Standoff Voltage | 5V |
| RoHS | Non-Compliant |
| Termination | SMD/SMT |
| Test Current | 10mA |
| Voltage Rating (DC) | 5V |
| Width | 2.92mm |
| Working Voltage | 5V |
Compliance
RoHS : Unconfirmed
