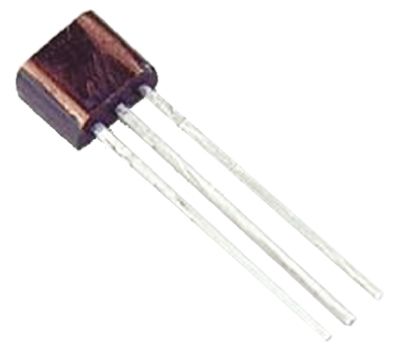

Bipolar Transistor (BJT) NPN 45V 1A 150MHz 1W E-Line TO-92

 Datasheets

Technical Details

Case/Package TO-92
China RoHS Compliant
Collector Base Voltage (VCBO) 60V
Collector Emitter Breakdown Voltage 45V
Collector Emitter Saturation Voltage 250mV
Collector Emitter Voltage (VCEO) 45V
Continuous Collector Current 1A
Current Rating 1A
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
Emitter Base Voltage (VEBO) 5V
Frequency 150MHz
Gain Bandwidth Product 150MHz
Height 4.01mm
hFE Min 15
Harmonized Tariff Schedule (HTS) Code 8541.29.00.75
Introduction Date 1992-02-01
Lead Free Lead Free
Length 4.77mm
Lifecycle Status Production
Max Collector Current 1A
Max Frequency 150MHz
Max Operating Temperature 200°C
Max Power Dissipation 1W
Min Operating Temperature -55°C
Mount Through Hole
Number of Elements 1
Number of Pins 3
Number of Terminals 3
Packaging Bulk
Polarity NPN
Power Dissipation 2W
Radiation Hardening No
REACH SVHC No
RoHS Compliant
Schedule B 8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|85
Transition Frequency 150MHz
Voltage Rating (DC) 45V
Weight 453.59237mg
Width 2.41mm
