Diodes Inc. - ZTX753

ZTX753 - Diodes Inc.

Small Signal Bipolar Transistor, 2A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-92

 Datasheets

Technical Details

Case/Package TO-92
China RoHS Compliant
Collector Base Voltage (VCBO) 120V
Collector Emitter Breakdown Voltage 100V
Collector Emitter Saturation Voltage 500mV
Collector Emitter Voltage (VCEO) 100V
Continuous Collector Current -2A
Current Rating -2A
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
Emitter Base Voltage (VEBO) 5V
Frequency 140MHz
Gain Bandwidth Product 140MHz
Height 4.01mm
hFE Min 25
Harmonized Tariff Schedule (HTS) Code 8541.29.00.75
Introduction Date 1992-02-01
Lead Free Lead Free
Length 4.77mm
Lifecycle Status Production
Max Collector Current 2A
Max Frequency 140MHz
Max Operating Temperature 200°C
Max Power Dissipation 1W
Manufacturer Package Identifier E-Line
Min Operating Temperature -55°C
Mount Through Hole
Number of Elements 1
Number of Pins 3
Number of Terminals 3
Packaging Bulk
Polarity PNP
Power Dissipation 2.5W
Radiation Hardening No
REACH SVHC No
RoHS Compliant
Schedule B 8541290080
Transition Frequency 140MHz
Voltage Rating (DC) -100V
Weight 453.59237mg
Width 2.41mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

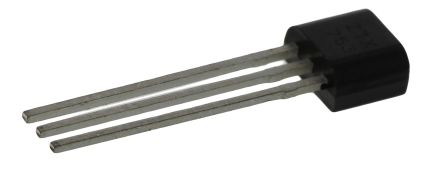

Diodes Inc. ZTX753 | RS
