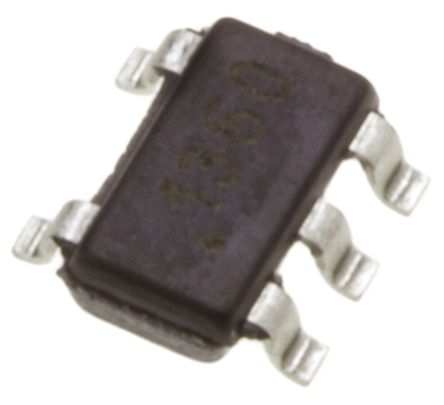

ZXLD1360ET5TA - Diodes Inc.

ZXLD1360 Series 30 V 1 A Surface Mount Step-Down LED Driver - TSOT-23-5

Technical Details

Case/Package	VSSOP
China RoHS	Compliant
Country of Origin	Mainland China
Dimming	PWM
Export Control Classification Number (ECCN) Code	EAR99
Efficiency	95%
Frequency	1MHz
Height - Seated (Max)	1mm
Harmonized Tariff Schedule (HTS) Code	8542.39.00.60
Interface	Serial
Introduction Date	2007-03-29
Lead Free	Lead Free
Length	2.9mm
Lifecycle Status	Production
Max Input Voltage	30V
Max Operating Temperature	125°C
Max Output Voltage	30V
Max Power Dissipation	1W
Max Supply Current	1A
Max Supply Voltage	30V
Min Input Voltage	7V
Min Operating Temperature	-40°C
Min Output Voltage	-300mV
Min Supply Voltage	7V
Mount	Surface Mount
Nominal Supply Current	1A
Number of Channels	1
Number of Characters	3
Number of Circuits	1
Number of Outputs	1
Number of Pins	5
Number of Terminals	5
Operating Supply Voltage	12V
Output Current	1A
Output Current per Channel	1A
Output Voltage	30V
Power Dissipation	1W
Quiescent Current	1.8mA
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Switching Frequency	1MHz
Temperature Grade	Automotive
Terminal Pitch	950µm
Termination	SMD/SMT
Width	1.6mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

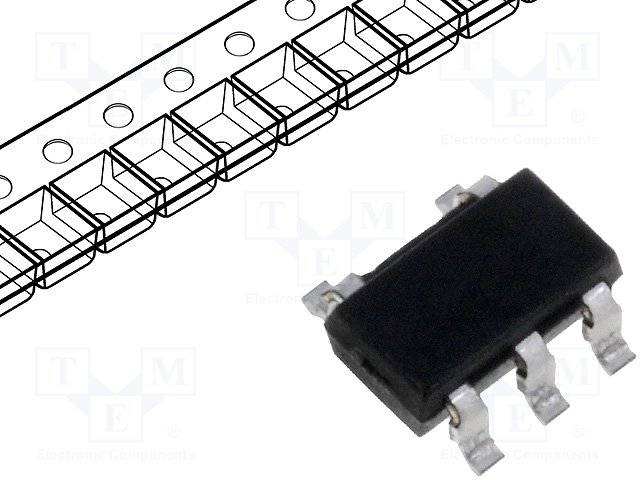

Diodes Inc. ZXLD1360ET5TA | TME
