1.5KE440C - Diotec
Trans Voltage Suppressor Diode, 1500W, 356V V(RWM), Bidirectional, 1 Element, Silicon
Technical Details
| Breakdown Voltage | 440V |
| Clamping Voltage | 631V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 85411000 |
| Introduction Date | 2001-11-23 |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Breakdown Voltage | 484V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 6.5W |
| Min Breakdown Voltage | 396V |
| Min Operating Temperature | -50°C |
| Mount | Axial |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Peak Pulse Power | 1.5kW |
| Peak Reverse Current | 5µA |
| Polarity | Bidirectional |
| REACH SVHC | Unknown |
| Reverse Standoff Voltage | 356V |
| RoHS | Compliant |
| Weight | 1.154g |
Compliance
RoHS : Unconfirmed
REACH SVHC : Unknown

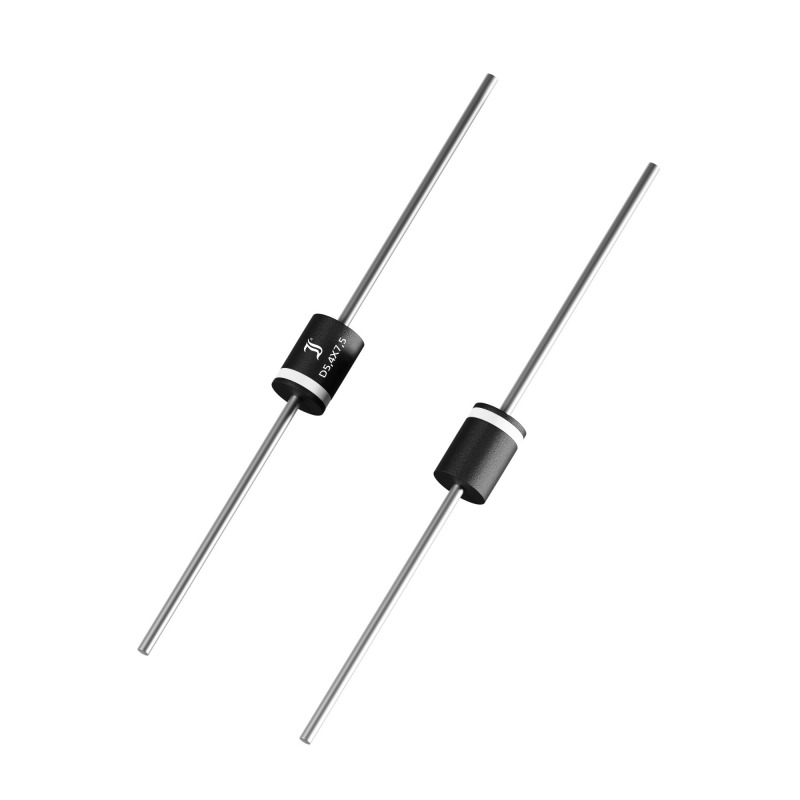

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Diotec | Production | ||
| Panjit | NRND | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Production | ||
| Rectron | Production | ||
| Rectron | Production | ||
| MCC | Production | ||
| World Products | Production | ||
| Littelfuse | Production |
