5KP30CA - Diotec
Trans Voltage Suppressor Diode, 5000W, 30V V(RWM), Bidirectional, 1 Element, Silicon
Technical Details
| Breakdown Voltage | 35.8V |
| Clamping Voltage | 48.4V |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 85411000 |
| Introduction Date | 2000-05-29 |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Breakdown Voltage | 38.3V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 8W |
| Min Breakdown Voltage | 33.3V |
| Min Operating Temperature | -50°C |
| Mount | Axial |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Peak Pulse Power | 5kW |
| Peak Reverse Current | 10µA |
| Polarity | Bidirectional |
| REACH SVHC | Unknown |
| Reverse Standoff Voltage | 30V |
| RoHS | Compliant |
| Weight | 1.722g |
Compliance
RoHS : Unconfirmed
REACH SVHC : Unknown

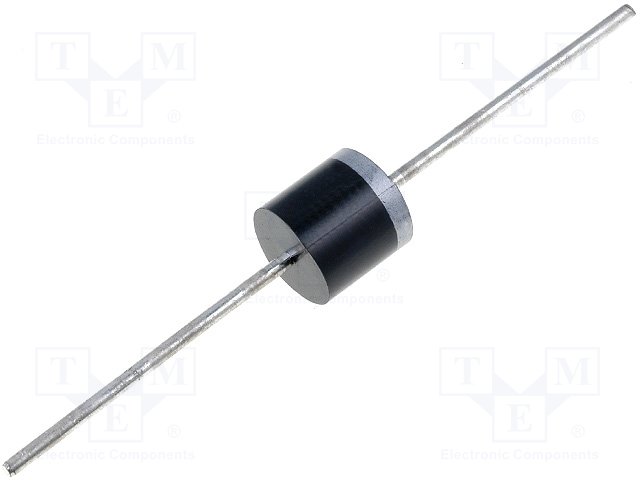

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Rectron | Production | ||
| Sensata /Crydom | Obsolete | ||
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| Diotec | Production | ||
| Diotec | Production | ||
| Diotec | Production | ||
| Diotec | Production | ||
| Diotec | Production | ||
| Diotec | Production |
