5KP45CA - Diotec
Trans Voltage Suppressor Diode, 5000W, 45V V(RWM), Bidirectional, 1 Element, Silicon
Technical Details
| Breakdown Voltage | 53.75V |
| Clamping Voltage | 72.7V |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 85411000 |
| Introduction Date | 2000-05-29 |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Breakdown Voltage | 57.5V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 8W |
| Min Breakdown Voltage | 50V |
| Min Operating Temperature | -50°C |
| Mount | Axial |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Peak Pulse Power | 5kW |
| Peak Reverse Current | 10µA |
| Polarity | Bidirectional |
| REACH SVHC | Unknown |
| Reverse Standoff Voltage | 45V |
| RoHS | Compliant |
| Weight | 1.722g |
Compliance
RoHS : Unconfirmed
REACH SVHC : Unknown

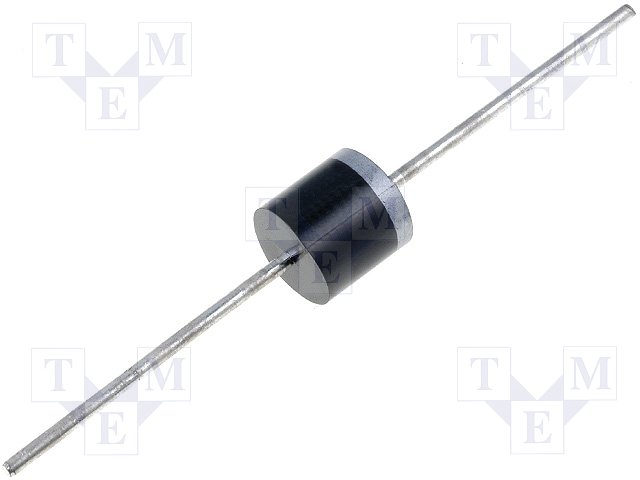

Images
TME
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Component Stockers USA |
US: 597
|
$ | 0.64 | 0.60 | 0.60 | 0.42 | 1.59 | 1.59 | ||
| DigiKey |
DE: 0
|
$ | 0.5187 | 0.5187 | ||||||
| Onlinecomponents.com |
US: 0
|
$ | 0.4033 | 0.3591 | ||||||
