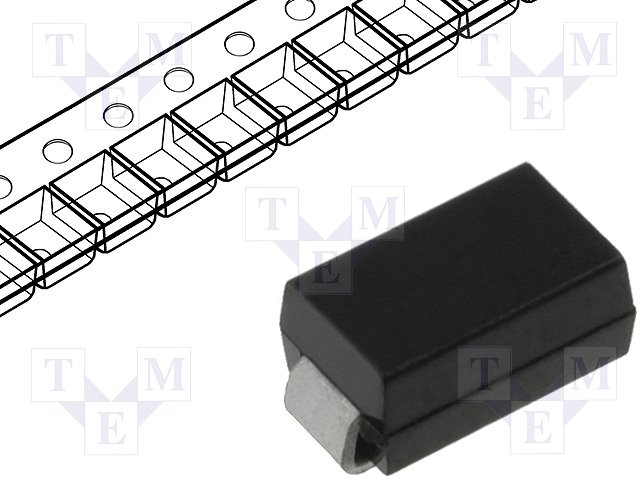

P4SMAJ43A - Diotec
Trans Voltage Suppressor Diode, 400W, 43V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC
Technical Details
| Breakdown Voltage | 50.45V |
| Clamping Voltage | 69.4V |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 85411000 |
| Introduction Date | 2000-05-29 |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Breakdown Voltage | 53.1V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 1W |
| Min Breakdown Voltage | 47.8V |
| Min Operating Temperature | -50°C |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Peak Pulse Power | 400W |
| Peak Reverse Current | 5µA |
| Polarity | Unidirectional |
| REACH SVHC | Unknown |
| Reverse Standoff Voltage | 43V |
| RoHS | Compliant |
| Weight | 126mg |
Compliance
RoHS : Unconfirmed
REACH SVHC : Unknown
Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Diotec | Production | ||
| Taiwan Semiconductor | Obsolete | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Obsolete | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Obsolete | ||
| Taiwan Semiconductor | Production | ||
| Rectron | Production | ||
| Taiwan Semiconductor | Production |
