P4SMAJ45A - Diotec
Trans Voltage Suppressor Diode, 400W, 45V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC
Technical Details
| Breakdown Voltage | 52.75V |
| Clamping Voltage | 72.7V |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 85411000 |
| Introduction Date | 2000-05-29 |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Breakdown Voltage | 55.5V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 1W |
| Min Breakdown Voltage | 50V |
| Min Operating Temperature | -50°C |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Peak Pulse Power | 400W |
| Peak Reverse Current | 5µA |
| Polarity | Unidirectional |
| REACH SVHC | Unknown |
| Reverse Standoff Voltage | 45V |
| RoHS | Compliant |
| Weight | 126mg |
Compliance
RoHS : Unconfirmed
REACH SVHC : Unknown

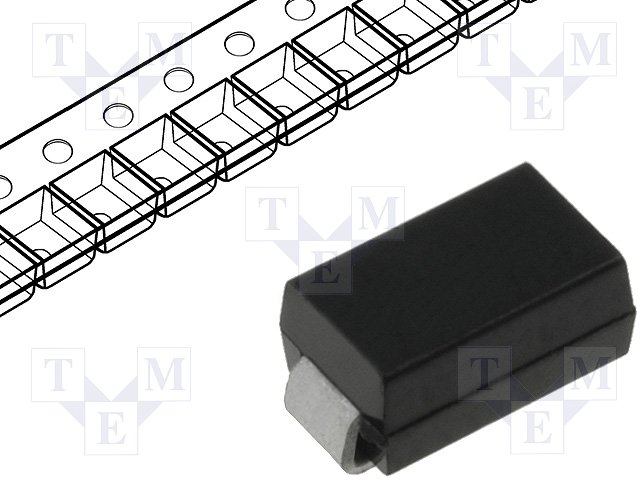

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Diotec | Production | ||
| Taiwan Semiconductor | Obsolete | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Obsolete | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Obsolete | ||
| Taiwan Semiconductor | Production | ||
| Rectron | Production | ||
| Taiwan Semiconductor | Production |
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Component Stockers USA |
US: 244
|
$ | 99.99 | 99.99 | 99.99 | 99.99 | 99.99 | 99.99 | ||
| DigiKey |
DE: 0
|
$ | 0.0638 | |||||||
| Onlinecomponents.com |
US: 0
|
$ | 0.0436 | |||||||
