Circuit Protection  >  TVS Diodes

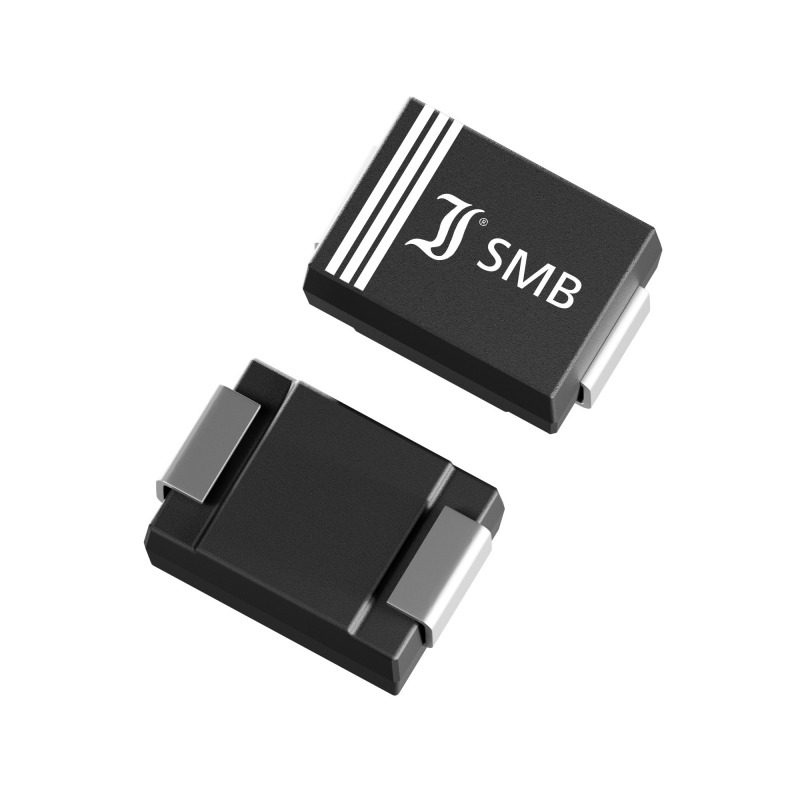

Diotec - P6SMBJ26CA

P6SMBJ26CA - Diotec

Trans Voltage Suppressor Diode, 600W, 26V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA

 Datasheets

Technical Details

Breakdown Voltage 30.5V
Case/Package SMB
Clamping Voltage 42.1V
Country of Origin Mainland China
Export Control Classification Number (ECCN) Code EAR99
Harmonized Tariff Schedule (HTS) Code 85411000
Introduction Date 2000-05-29
Leakage Current 5µA
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Breakdown Voltage 32.1V
Max Operating Temperature 150°C
Max Power Dissipation 5W
Min Breakdown Voltage 28.9V
Min Operating Temperature -50°C
Mount Surface Mount
Number of Elements 1
Number of Pins 2
Number of Terminals 2
Packaging Tape and Reel
Peak Pulse Current 14.3A
Peak Pulse Power 600W
Peak Reverse Current 5µA
Polarity Bidirectional
REACH SVHC Unknown
Reverse Breakdown Voltage 28.9V
Reverse Standoff Voltage 26V
RoHS Compliant
Test Current 1mA
Weight 243mg

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Unknown

Images

Datasheets

 Win Source
 Rutronik
 TME

Lifecycle Status Indicator

   Production

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Vishay
P6SMB30CA-E3/52
Production
Vishay
P6SMB30CAHE3/52
Obsolete
Littelfuse
TPSMB26CA-VR
Production
onsemi
P6SMB30CAT3
Obsolete
Rectron
P6FMBJ30CA-W
Production
Littelfuse
P6SMB30C
Obsolete
Vishay
P6SMB30CA-E3/5B
Production
Central Semiconductor
P6SMB30CA TR13
Unknown
Vishay
P6SMB30CA-E3/55
Obsolete
Vishay
P6SMB30CA/2
Unknown

See more alternatives See less alternatives

Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Win Source
266638-P6SMBJ26CA
CN: 6500
 $ 0.0713 0.0476
 Historical Pricing  Historical Stock Levels
Quantity
Location
Rutronik
DTRL12172
DE: 39000
 $ 0.0442
 Historical Pricing  Historical Stock Levels
Quantity
Location
TME
P6SMBJ26CA-DIO
PL: 3278
 $ 0.1288 0.1052 0.1052 0.0874 0.07 0.0535
 Historical Pricing  Historical Stock Levels
Quantity
Location
Mouser
637-P6SMBJ26CA
US: 8400
 $ 0.14 0.107 0.107 0.09 0.076 0.046
 Historical Pricing  Historical Stock Levels
Quantity
Location
Master Electronics
P6SMBJ26CA
US: 0
 $ 0.0486
 Historical Pricing  Historical Stock Levels
Quantity
Location
Arrow Electronics
P6SMBJ26CA
US: 0
 $ 0.0552
 Historical Pricing  Historical Stock Levels
Quantity
Location

Non-Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
RC Electronics
P6SMBJ26CA
CN: 46778
 $ 0.36 0.33 0.33 0.30 0.28 0.27
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
P6SMBJ26CA
US: 3278
 $ 0.0821 0.0683
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
4878-P6SMBJ26CACT-ND
DE: 3208
 $ 0.1479 0.1134 0.1134 0.1479 0.0802 0.0802
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
4878-P6SMBJ26CADKR-ND
DE: 3208
 $ 0.1479 0.1134 0.1134 0.1479 0.0802 0.0802
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
4878-P6SMBJ26CATR-ND
DE: 3000
 $ 0.0644
 Historical Pricing  Historical Stock Levels
Quantity
Location
Classic Components
P6SMBJ26CA
US: 66000
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Abacus Technologies
P6SMBJ26CA
US: 98340
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Sourcengine
P6SMBJ26CA
US: 3278
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Onlinecomponents.com
P6SMBJ26CA
US: 0
 $ 0.0486
 Historical Pricing  Historical Stock Levels
Quantity
Location
