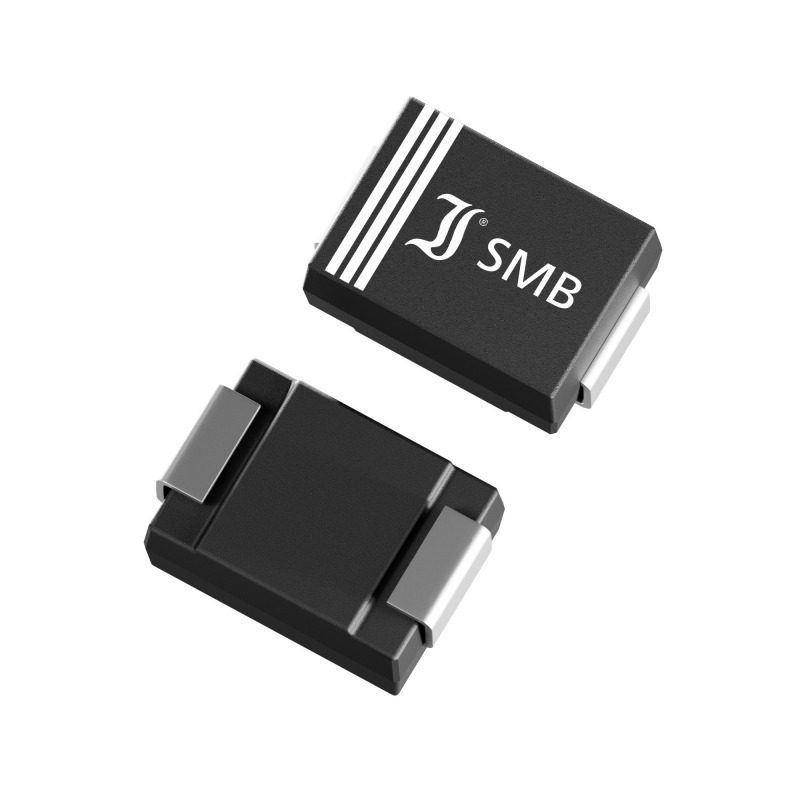

P6SMBJ33CA - Diotec
Trans Voltage Suppressor Diode, 600W, 33V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA
Technical Details
| Breakdown Voltage | 38.7V |
| Clamping Voltage | 53.3V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 85411000 |
| Introduction Date | 2001-12-05 |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Breakdown Voltage | 40.7V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 5W |
| Min Breakdown Voltage | 36.7V |
| Min Operating Temperature | -50°C |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Peak Pulse Power | 600W |
| Peak Reverse Current | 5µA |
| Polarity | Bidirectional |
| REACH SVHC | Unknown |
| Reverse Standoff Voltage | 33V |
| RoHS | Compliant |
| Weight | 243mg |
Compliance
RoHS : Unconfirmed
REACH SVHC : Unknown
Images

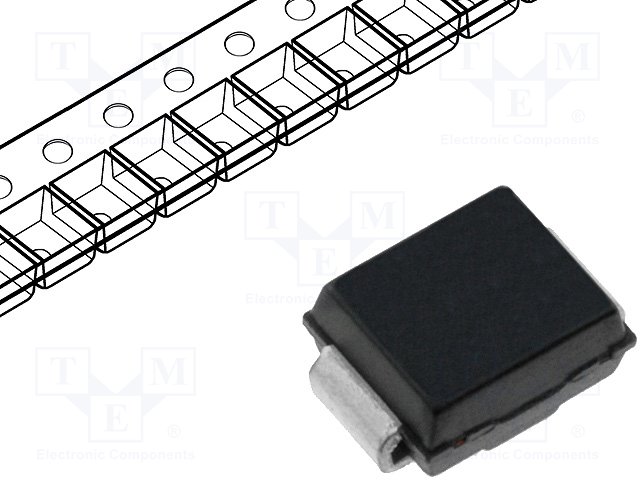

TME
