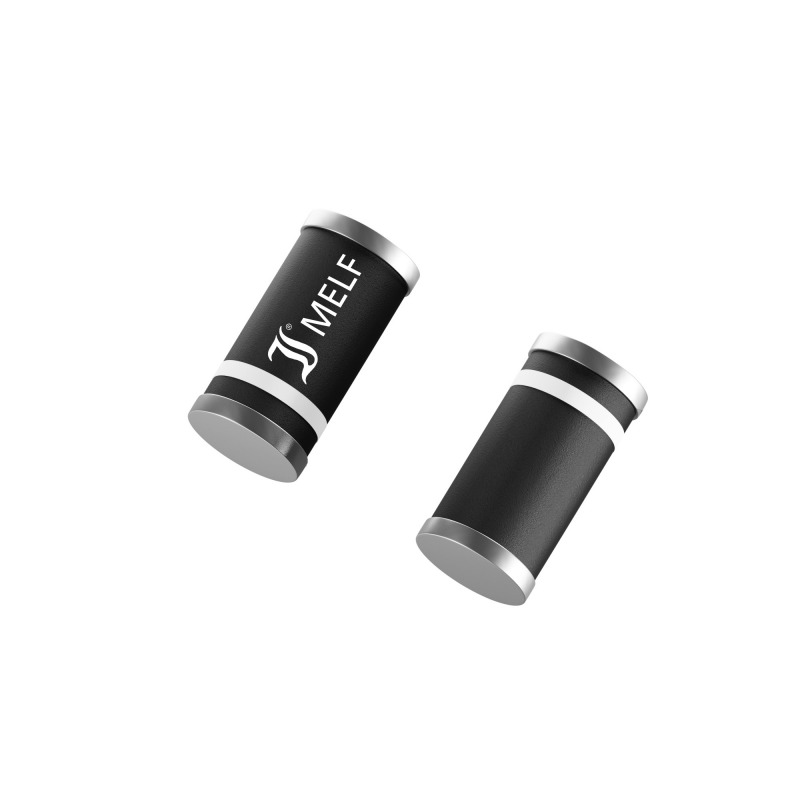

TGL41-27CA - Diotec
Trans Voltage Suppressor Diode, 400W, 23.1V V(RWM), Bidirectional, 1 Element, Silicon, DO-213AB
Technical Details
| Breakdown Voltage | 27V |
| Clamping Voltage | 37.5V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 85411000 |
| Introduction Date | 2001-12-05 |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Breakdown Voltage | 28.4V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 1W |
| Min Breakdown Voltage | 25.7V |
| Min Operating Temperature | -50°C |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Peak Pulse Power | 400W |
| Peak Reverse Current | 5µA |
| Polarity | Bidirectional |
| REACH SVHC | Unknown |
| Reverse Standoff Voltage | 23.1V |
| RoHS | Compliant |
| Weight | 198mg |
Compliance
RoHS : Unconfirmed
REACH SVHC : Unknown
Images

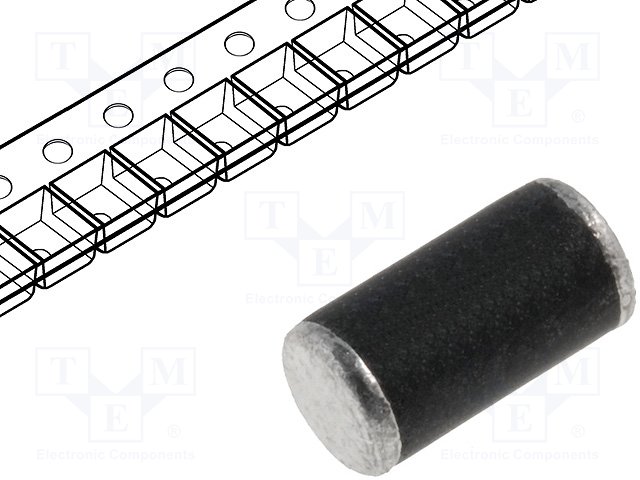

TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Taiwan Semiconductor | Production | ||
| Diotec | Production | ||
| Diotec | Production | ||
| Diotec | Production | ||
| Diotec | Production | ||
| Diotec | Production | ||
| Diotec | Production | ||
| Diotec | Production | ||
| Diotec | Production | ||
| Semtech | Production |
