Technical Details
| Country of Origin | Mainland China |
| Current | 1A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Forward Voltage | 1.7V |
| Harmonized Tariff Schedule (HTS) Code | 85411000 |
| Introduction Date | 2000-05-29 |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Forward Surge Current (Ifsm) | 33A |
| Max Operating Temperature | 150°C |
| Max Output Current | 1A |
| Min Operating Temperature | -50°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Peak Non-Repetitive Surge Current | 30A |
| Peak Reverse Current | 5µA |
| REACH SVHC | Unknown |
| Recovery Time | 75ns |
| Reverse Recovery Time | 75ns |
| Reverse Standoff Voltage | 1kV |
| RoHS | Compliant |
| Schedule B | 8541100080 |
| Voltage | 1kV |
| Weight | 126mg |
Compliance
RoHS : Unconfirmed
REACH SVHC : Unknown

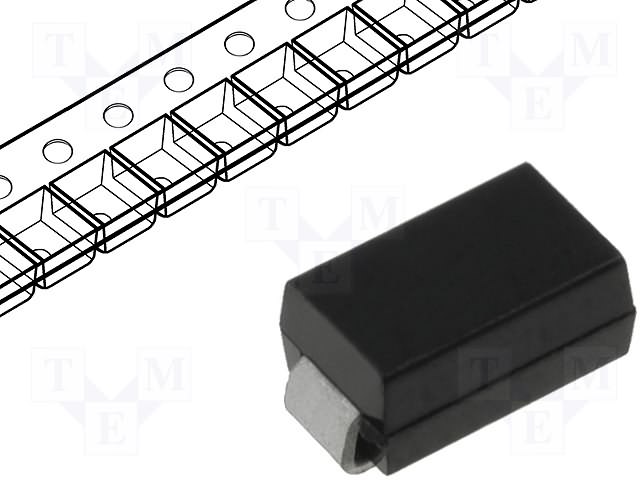

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Diodes Inc. | Obsolete | ||
| Rectron | Production | ||
| Diodes Inc. | Production | ||
| Rectron | Production | ||
| Diotec | Production | ||
| Rectron | Unknown | ||
| Diodes Inc. | Production | ||
| onsemi | Obsolete | ||
| onsemi | Production | ||
| Central Semiconductor | Production |
