Diptronics - DTSM-21R-V-B

DTSM-21R-V-B - Diptronics

Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 12VDC 2.55N SMD Tube

 Datasheets

Technical Details

Color Red
Contact Material Metal
Contact Resistance 100mΩ
Country of Origin Mainland China
Export Control Classification Number (ECCN) Code EAR99
Electrical Life 100kcycles
Height 3.5mm
Harmonized Tariff Schedule (HTS) Code 8536.50.90.40
Insulation Resistance 100MΩ
Introduction Date 2016-09-09
Length 12mm
Lifecycle Status Production
Max Current Rating 50mA
Max Operating Temperature 70°C
Max Voltage Rating (DC) 12V
Min Operating Temperature -25°C
Mount Surface Mount
Number of Positions 1
Operating Force 3.04N
Radiation Hardening No
REACH SVHC Yes
RoHS Compliant
Termination Gull Wing
Throw Configuration SPST

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

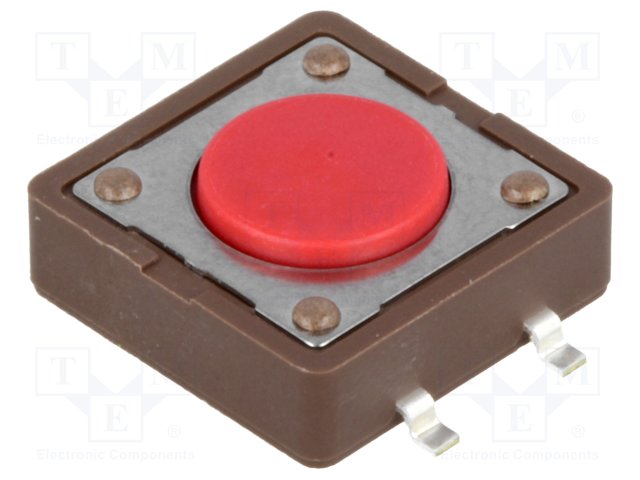

Diptronics DTSM-21R-V-B | TME

TME

Datasheets

 TME
 Mouser
 Avnet Abacus

Lifecycle Status Indicator

   Production

Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
TME
DTSM-21R-V-B
PL: 263
 $ 0.2934 0.2342 0.2342 0.1898 0.1898
 Historical Pricing  Historical Stock Levels
Quantity
Location
Mouser
113-DTSM-21R-V-B
US: 1113
 $ 0.45 0.45 0.374 0.374 0.284 0.216
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet Abacus
DTSM-21R-V-B
EU: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
