100DP1T2B3M2QEH - E-Switch
Toggle Switch, DPDT, On-on, 5A, 120VAC/28VDC, Panel Mt., Pc Pin, 100 Series
Technical Details
| Actuator Length | 6.858mm |
| Actuator Material | Brass |
| Contact Current Rating | 5A |
| Contact Plating | Silver |
| Contact Resistance | 10mΩ |
| Contact Voltage Rating (AC) | 120V |
| Country of Origin | Mainland China |
| Current Rating | 5A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 40kcycles |
| Height | 8.89mm |
| Housing Material | Stainless Steel |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.70.00 |
| Illumination Type | Non-Illuminated |
| Insulation Resistance | 1GΩ |
| Introduction Date | 2007-07-10 |
| Lead Free | Lead Free |
| Length | 12.7mm |
| Life (Cycles) | 40kcycles |
| Lifecycle Status | Production |
| Max Current Rating | 5A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 28V |
| Min Operating Temperature | -30°C |
| Mount | Through Hole |
| Number of Positions | 2 |
| REACH SVHC | No |
| RoHS | Compliant |
| Sealable | EPOXY |
| Switch Function | On-On |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 120V |
| Voltage Rating (DC) | 28V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

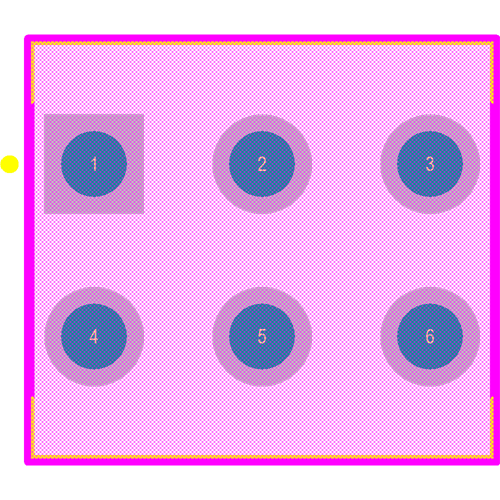

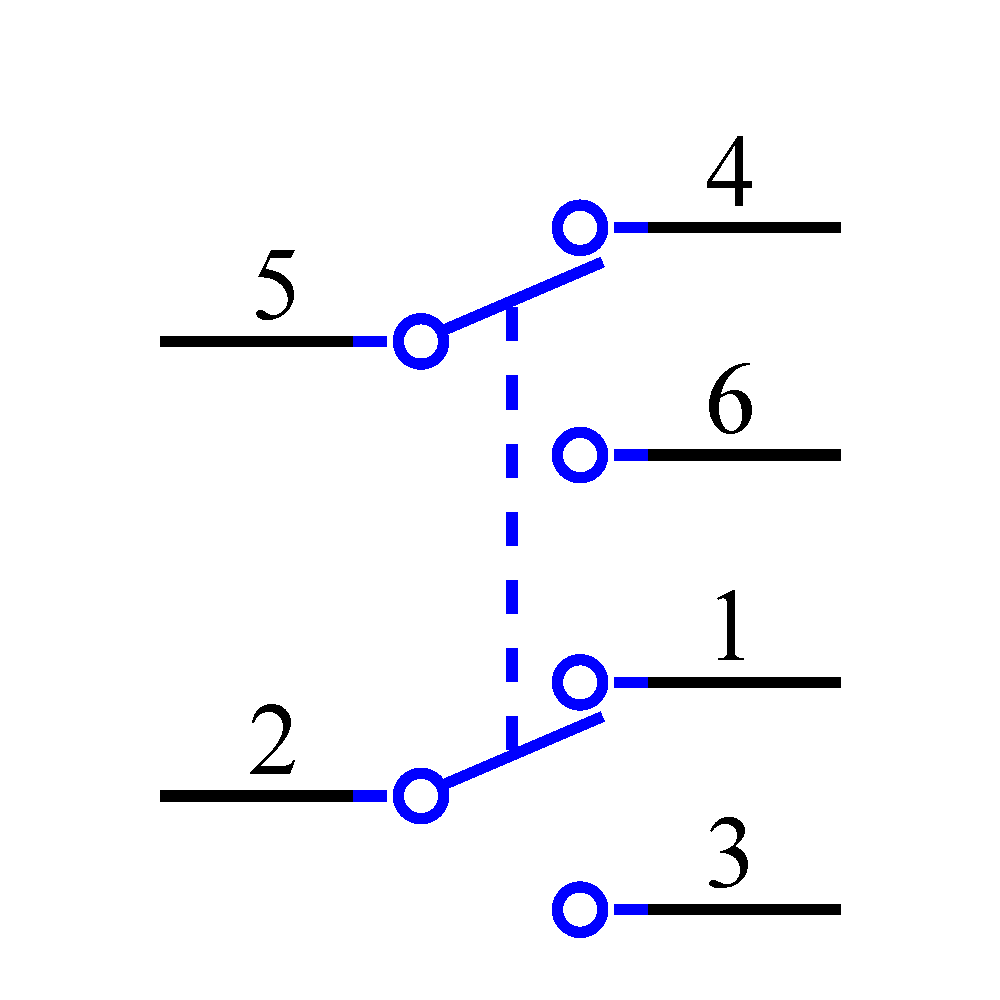

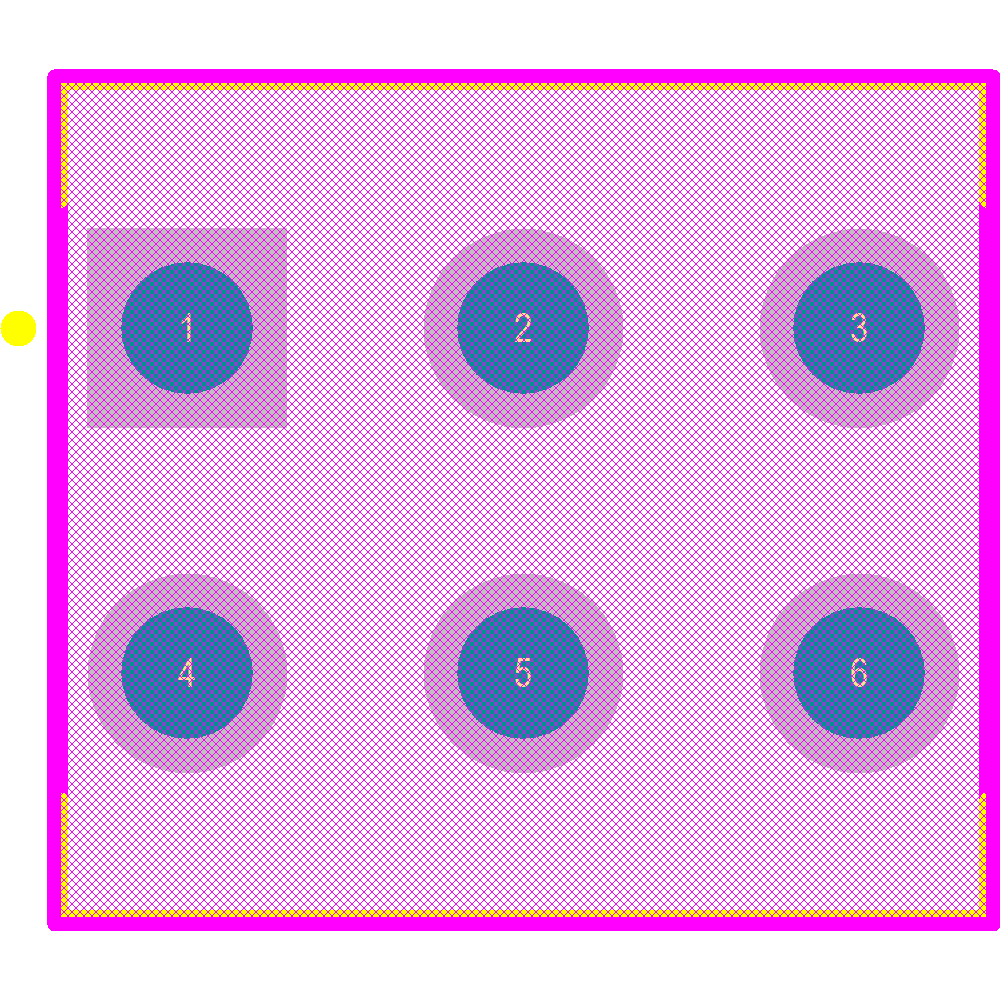

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| E-Switch | Production | ||
| Grayhill | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| Grayhill | Production | ||
| Grayhill | Production | ||
| Grayhill | Production | ||
| Grayhill | Production |
