Electromechanical > Switches > Toggle Switches

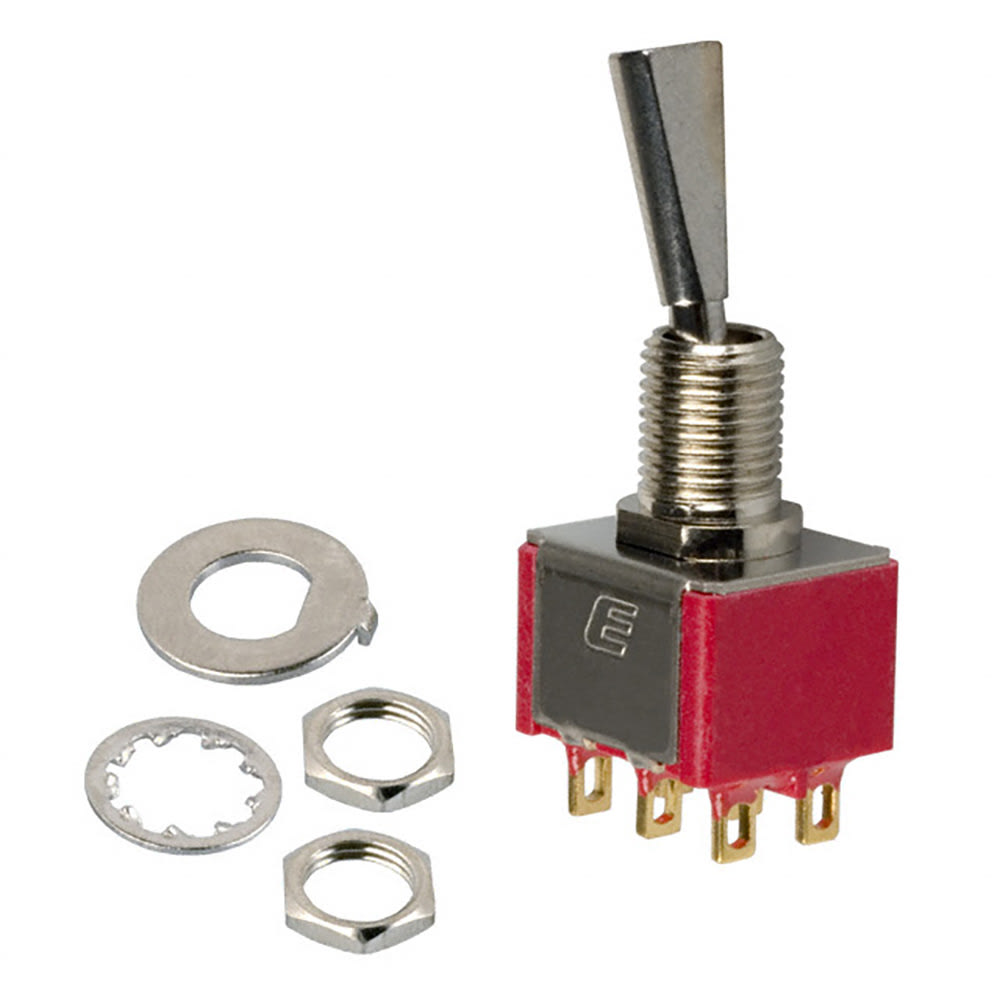

100DP1T6B11M1REH - E-Switch

Toggle Switch, DPDT, Latched, 0.02A, 20VDC, Solder Terminal, Flat Type Actuator, Panel Mount

Actuator Length	12.2936mm
Actuator Material	Brass, Chrome
Contact Current Rating	20mA
Contact Material	Gold
Contact Plating	Gold
Contact Voltage Rating (AC)	20V
Country of Origin	Mainland China
Current Rating	400mA
Export Control Classification Number (ECCN) Code	EAR99
Electrical Life	40kcycles
Height	8.89mm
Harmonized Tariff Schedule (HTS) Code	8536.50.70.00
Illumination Type	Illuminated, Non-Illuminated
Introduction Date	2010-12-30
Lead Free	Lead Free
Length	12.7mm
Lifecycle Status	Production
Max Current Rating	20mA
Max Operating Temperature	85°C
Max Voltage Rating (DC)	20V
Min Operating Temperature	-30°C
Mount	Panel
Orientation	Vertical
Packaging	Bulk
REACH SVHC	No
RoHS	Compliant
Switch Function	On-On
Termination	Solder
Throw Configuration	DPDT
Voltage Rating (AC)	20V
Voltage Rating (DC)	20V
Width	11.4mm

RoHS : Unconfirmed

REACH SVHC : No

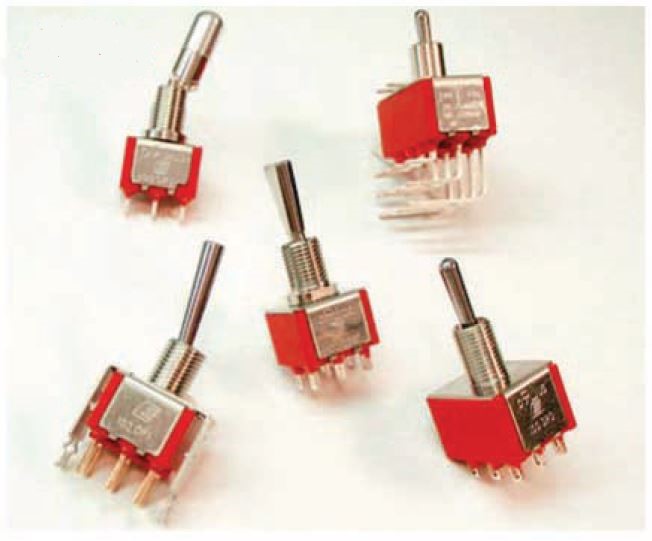

E-Switch 100DP1T6B11M1REH | Onlinecomponents.com

Onlinecomponents.com

Production

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
C&K Components	7201P1YZQES	Obsolete
C&K Components	7201P1CWZ3QE	Production
C&K Components	7201LYZQE2	Production
Nidec Copal	8C2011-Z	Production
Nidec Copal	8E2011C-Z	Production
Nidec Copal	8F2012-Z	Production
Nidec Copal	8E2011-Z	Production
C&K Components	7201P3Y1ZQE	Production
C&K Components	U21P3DZGE	Production
E-Switch	100DP3T4B1M1QE	Production
