320.09E11BLK - E-Switch
Pushbutton Switch, SPST, On-off, Momentary, 0.3A, 50VDC, 4 PCB Hole Cnt, Solder Terminal, Through Hole-straight
Technical Details
| Actuator Length | 8.7884mm |
| Actuator Material | PC, Polycarbonate |
| Color | Black |
| Contact Plating | Silver |
| Contact Resistance | 10mΩ |
| Current Rating | 25mA |
| Electrical Life | 1Mcycles |
| Height | 7.3914mm |
| Housing Material | Nylon |
| Illumination Type | Non-Illuminated |
| Insulation Resistance | 1GΩ |
| Length | 15.875mm |
| Lifecycle Status | Production |
| Max Current Rating | 300mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 50V |
| Mechanical Life | 1Mcycles |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Packaging | Bulk |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switch Function | Off-Mom |
| Switch Travel | 600µm |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 50V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

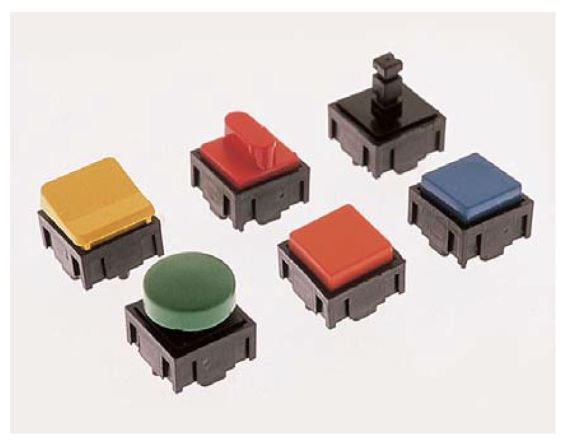

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| E-Switch | Production | ||
| E-Switch | Production | ||
| E-Switch | Production | ||
| E-Switch | Production | ||
| E-Switch | Production | ||
| E-Switch | Obsolete | ||
| E-Switch | Obsolete | ||
| E-Switch | Production | ||
| E-Switch | Production | ||
| E-Switch | Unknown |
