320.22E11WHT - E-Switch
Switch Tactile N.O. SPST Rocker PC Pins 0.025A 50VDC 1.32N Thru-Hole
Technical Details
| Actuator Length | 5.207mm |
| Actuator Material | PC, Polycarbonate |
| Color | White |
| Contact Current Rating | 25mA |
| Contact Plating | Silver |
| Contact Resistance | 10mΩ |
| Current Rating | 25mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 1Mcycles |
| Height | 7.4mm |
| Housing Material | Nylon |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.40 |
| Illumination Type | Non-Illuminated |
| Insulation Resistance | 1GΩ |
| Introduction Date | 2002-06-24 |
| Lead Free | Lead Free |
| Length | 12.4mm |
| Lifecycle Status | Obsolete |
| Max Current Rating | 25mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 50V |
| Mechanical Life | 1Mcycles |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Number of Positions | 1 |
| Operating Force | 1.81N |
| Packaging | Bulk |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switch Function | Off-Mom |
| Switch Travel | 600µm |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 50V |
| Width | 12.5mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

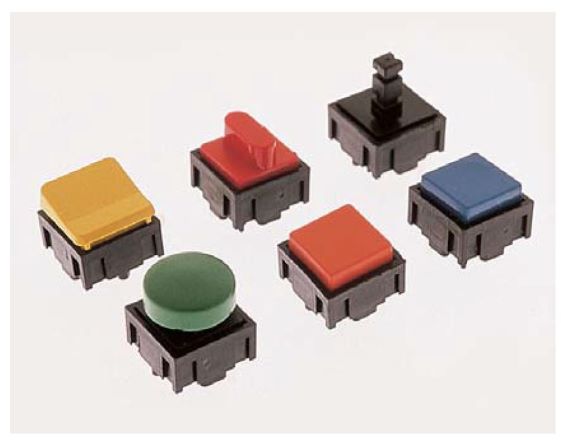

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| E-Switch | Production | ||
| E-Switch | Obsolete | ||
| E-Switch | Production | ||
| E-Switch | Production | ||
| E-Switch | Unknown | ||
| Grayhill | Production | ||
| Grayhill | Production | ||
| Grayhill | Production | ||
| Grayhill | Production | ||
| Grayhill | Production |
