LC1258EENP - E-Switch

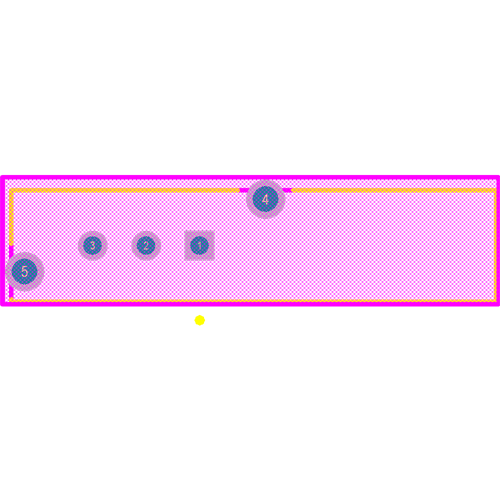

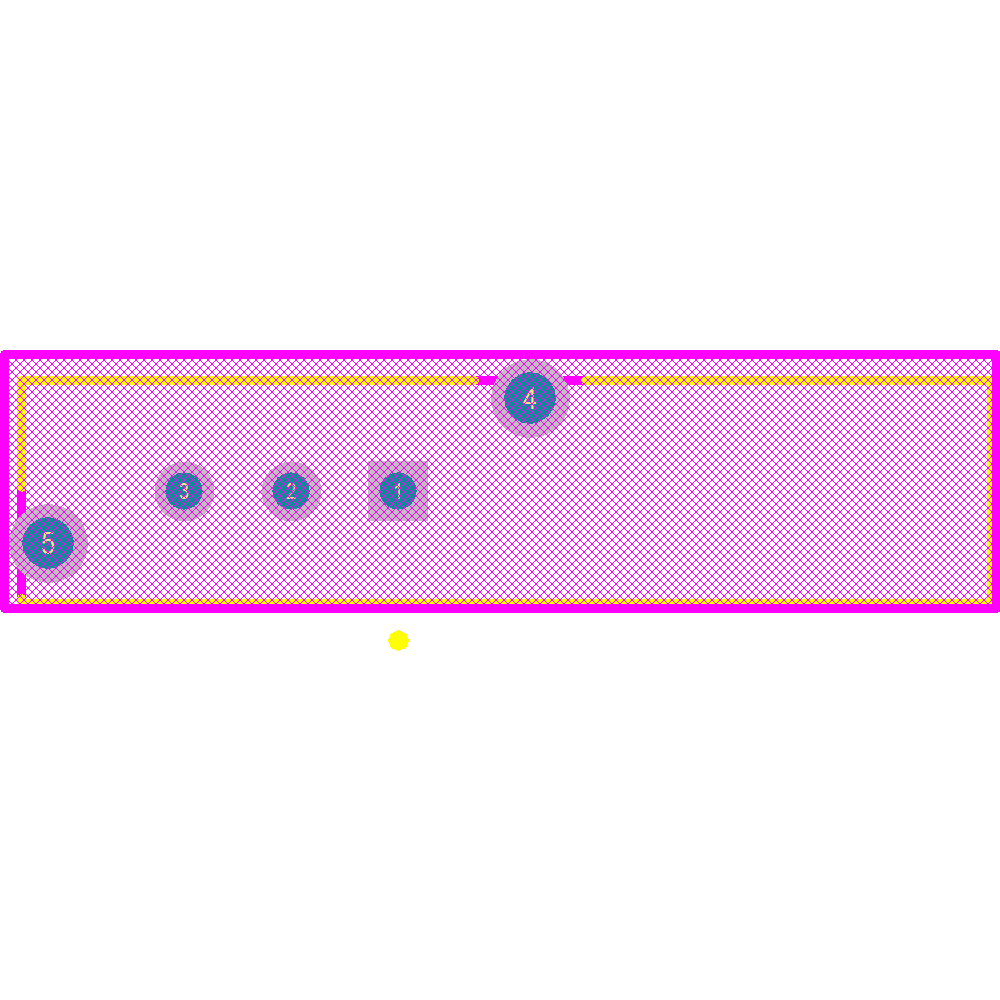

Pushbutton Switch, right Angle, dpdt, on-(On), pc Tail Terminal, pcb Hole Count: 5
Technical Details
| Actuator Length | 10.0076mm |
| Actuator Material | Polyacetal |
| Contact Current Rating | 300mA |
| Contact Material | Bronze, Silver |
| Contact Plating | Silver |
| Contact Resistance | 100mΩ |
| Current Rating | 300mA |
| Dielectric Material | Phenolic |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 10kcycles |
| Height | 8.3mm |
| Housing Material | Steel |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.70.00 |
| Introduction Date | 2002-06-24 |
| Lead Free | Lead Free |
| Length | 12mm |
| Life (Cycles) | 10kcycles |
| Lifecycle Status | Production |
| Max Current Rating | 300mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 30V |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Number of Positions | 2 |
| Operating Force | 3.24N |
| Orientation | Right Angle |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | MOLDED |
| Switch Function | On-On |
| Terminal Material | Brass |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (DC) | 30V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
