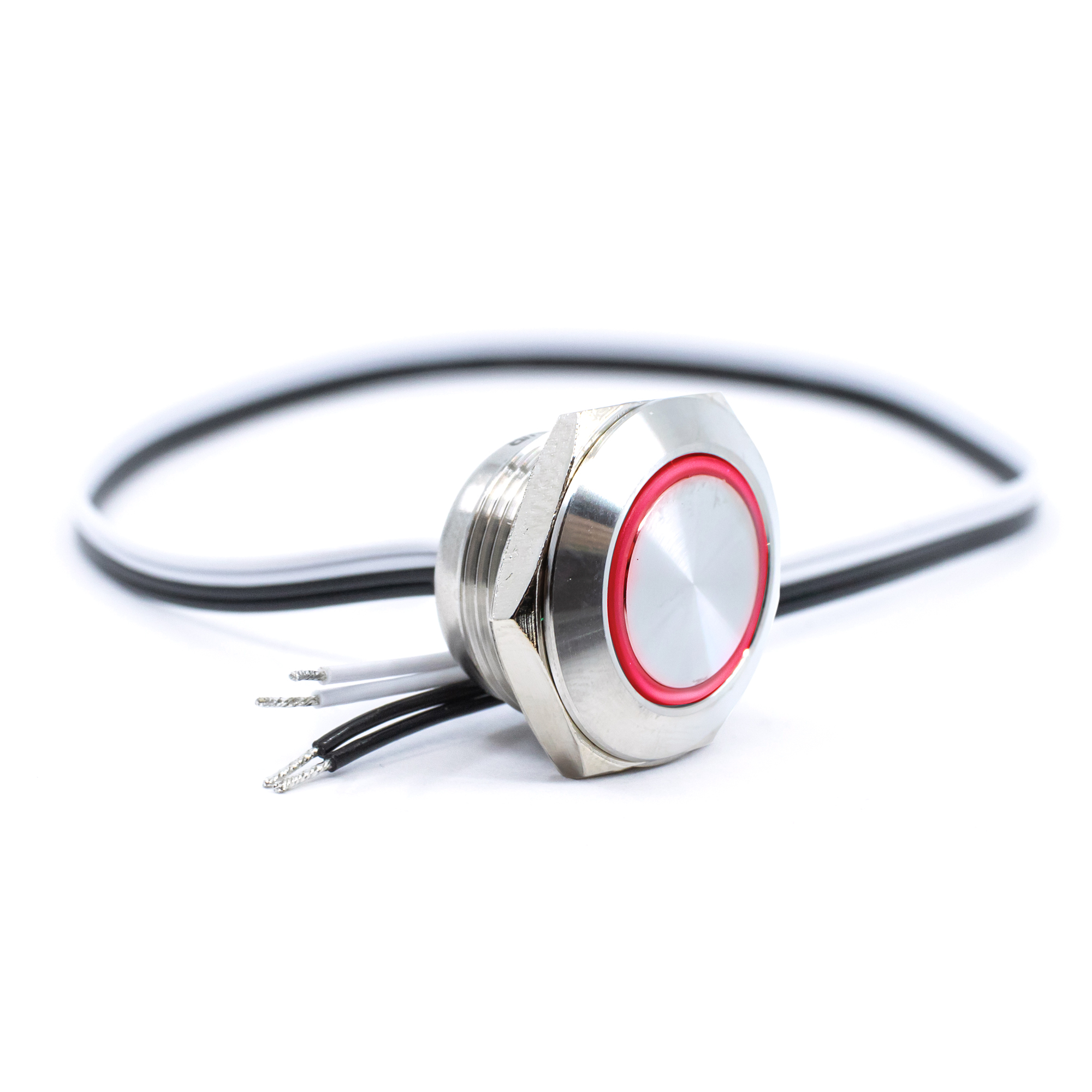

PVT4FW4SS311 - E-Switch
Pushbutton Switch, IP65, Spst-no, Off-(on), 50MA, 24VDC, Wire, PVT4 Series
Technical Details
| Contact Current Rating | 50mA |
| Contact Material | Silver |
| Contact Resistance | 50mΩ |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.70.00 |
| Introduction Date | 2018-03-19 |
| Life (Cycles) | 500kcycles |
| Lifecycle Status | Production |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Number of Positions | 2 |
| REACH SVHC | No |
| RoHS | Compliant |
| Voltage Rating (DC) | 24V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
