Electromechanical > Switches > Tactile Switches

TL3330AF260QG - E-Switch

Switch Tactile N.O. SPST Rectangular Button Gull Wing 0.05A 12VDC 2.55N SMD

Technical Details

Actuator Length	1mm
Actuator Material	Nylon, Polyamide
Case/Package	SMD/SMT
Color	Black
Contact Current Rating	50mA
Contact Material	Silver
Contact Plating	Silver
Contact Resistance	100mΩ
Current Rating	50mA
Dielectric Material	Nylon
Electrical Life	30kcycles
Height	2.5mm
Illumination Type	Non-Illuminated
Insulation Resistance	100MΩ
Lead Free	Lead Free
Length	6.9mm
Life (Cycles)	30kcycles
Lifecycle Status	Production
Max Current Rating	50mA
Max Operating Temperature	70°C
Max Voltage Rating (DC)	12V
Mechanical Life	30kcycles
Min Operating Temperature	-30°C
Mount	Surface Mount
Number of Positions	1
Operating Force	3.04N
Orientation	Right Angle
REACH SVHC	Yes
RoHS	Compliant
Switch Function	Off-Mom
Switch Travel	250µm
Termination	Gull Wing
Throw Configuration	SPST
Voltage Rating (DC)	12V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

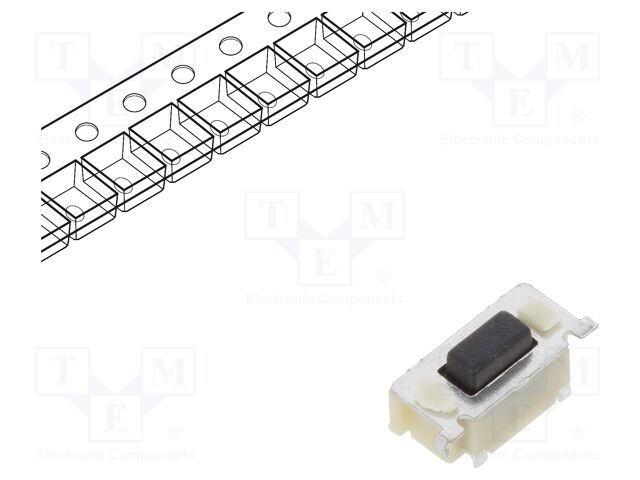

E-Switch TL3330AF260QG | TME

TME

Datasheets

Master Electronics

Lifecycle Status Indicator

Production

Symbol

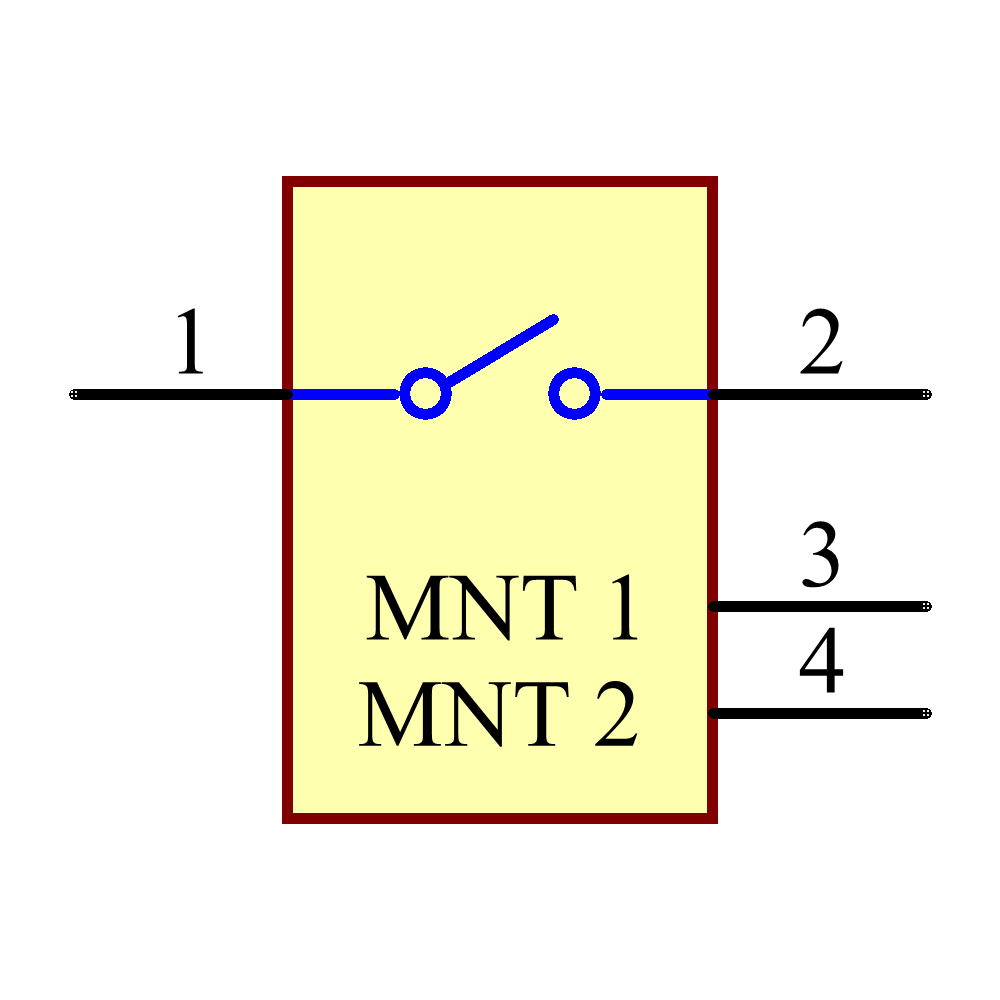

TL3330AF260QG Symbol - E-Switch

TL3330AF260QG Symbol - E-Switch

TL3330AF260QG Symbol - E-Switch

TL3330AF260QG Symbol - E-Switch

‹ ›

Footprint

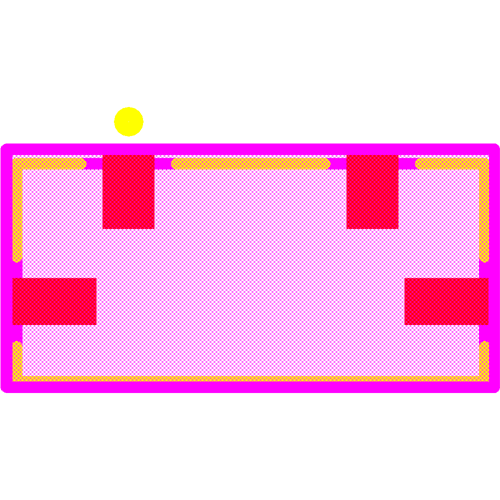

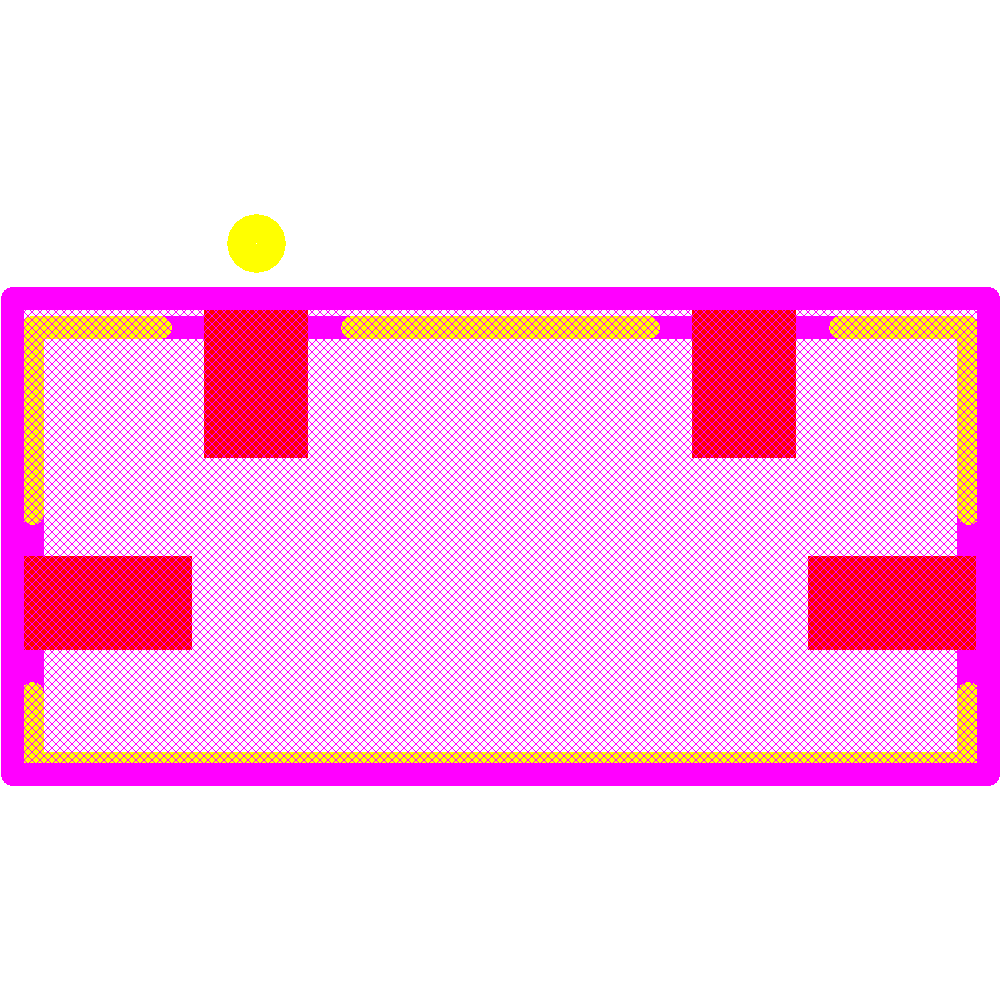

TL3330AF260QG Footprint - E-Switch
