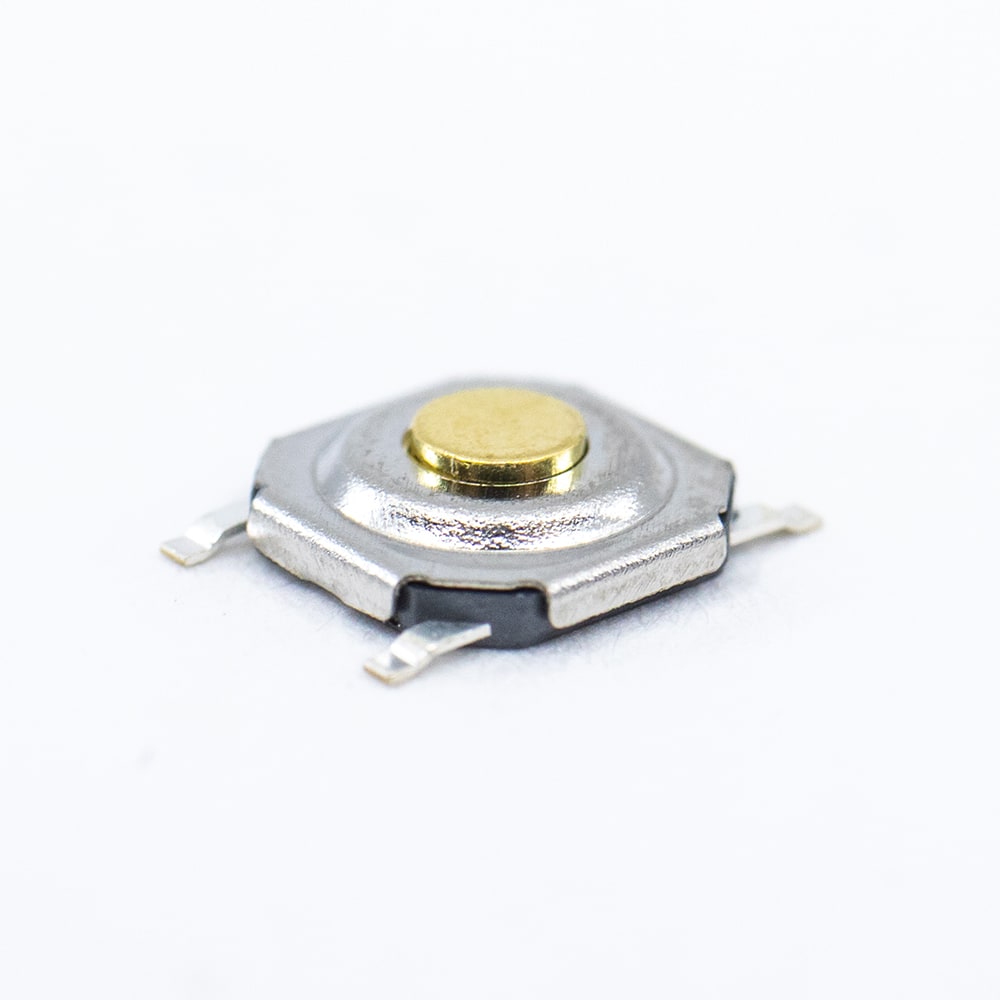

TL3342F450QG - E-Switch
Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 12VDC 10000Cycles 4.41N SMD T/R
Technical Details
| Actuator Length | 304.8µm |
| Color | Gold |
| Contact Current Rating | 50mA |
| Contact Plating | Silver |
| Contact Resistance | 500mΩ |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 10kcycles |
| Height | 800µm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.40 |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2012-10-18 |
| Lead Free | Lead Free |
| Length | 5mm |
| Life (Cycles) | 10kcycles |
| Lifecycle Status | Production |
| Max Current Rating | 50mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 12V |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Number of Positions | 1 |
| Operating Force | 4.9N |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Terminal Material | Brass |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 12V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Knitter Switch | Unknown | ||
| E-Switch | Production | ||
| E-Switch | Production | ||
| C&K Components | Production | ||
| APEM | Production | ||
| Multicomp | Production | ||
| Multicomp | Production | ||
| E-Switch | Production | ||
| Schurter | Production | ||
| E-Switch | Production |
