PTR016V0185-BK - Eaton
PTC Resettable Fuse 1.85A(hold) 3.7A(trip) 16VDC 40A 1W 10s 0.03Ohm Radial 10.2 X 3.1 X 15.7mm Bag
Technical Details
| Approvals | TUV |
| Case/Package | Radial |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 15.7mm |
| Hold Current | 1.85A |
| Harmonized Tariff Schedule (HTS) Code | 8533.40.80.70 |
| Introduction Date | 2011-11-07 |
| Lead Diameter | 500µm |
| Lead Pitch | 5mm |
| Length | 10.2mm |
| Lifecycle Status | Production |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 16V |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Terminals | 2 |
| Packaging | Bulk |
| Power Dissipation | 1W |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Resistance | 30mΩ |
| RoHS | Compliant |
| Terminal Pitch | 5mm |
| Termination | Radial |
| Time to Trip | 10s |
| Trip Current | 3.7A |
| Weight | 453.59237mg |
| Width | 3.5mm |
| Working Voltage | 16V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

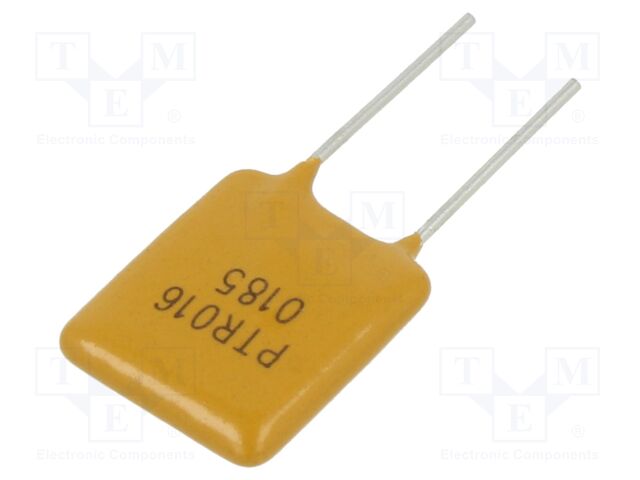

Images
