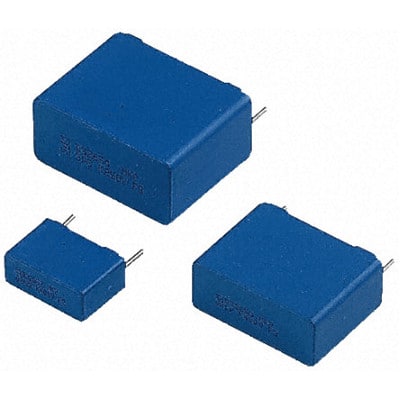

B32653A4474K - EPCOS
Epcos B32653 470nF Polypropylene Film Cap 200V ac; 400V dc +/-10%; Through Hole
Technical Details
| Capacitance | 470nF |
| Case/Package | Radial |
| China RoHS | Compliant |
| Depth | 8.5mm |
| Dielectric | PP |
| Dielectric Material | Polypropylene |
| Height | 16.5mm |
| Height - Seated (Max) | 16.51mm |
| Lead/Base Style | Straight |
| Lead Diameter | 800µm |
| Lead Pitch | 22.5mm |
| Length | 26.5mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Bulk |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Termination | Radial |
| Tolerance | 10% |
| Voltage | 400V |
| Voltage Rating (AC) | 200V |
| Voltage Rating (DC) | 400V |
| Width | 8.509mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
