Technical Details
| Case/Package | Radial |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Core Material | Ferrite |
| Country of Origin | India, Mainland China |
| Current | 700mA |
| Current Rating | 700mA |
| DC Current | 700mA |
| DC Resistance (DCR) | 550mΩ |
| Depth | 13.2mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Flammability Rating | UL94 V-0 |
| Height | 20.3mm |
| Harmonized Tariff Schedule (HTS) Code | 8504.50.80.00 |
| Impedance | 10kΩ |
| Inductance | 10mH |
| Inductance Tolerance | 30% |
| Introduction Date | 1997-10-01 |
| Lead/Base Style | Pin |
| Lead Diameter | 700µm |
| Lead Free | Lead Free |
| Lead Length | 3mm |
| Lead Pitch | 15mm |
| Length | 18.2mm |
| Lifecycle Status | Production |
| Max Current Rating | 700mA |
| Max DC Current | 700mA |
| Max Length | 18.2mm |
| Max Operating Temperature | 125°C |
| Max Width | 13.2mm |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 2 |
| Number of Lines | 2 |
| Number of Pins | 4 |
| Number of Terminals | 4 |
| Orientation | Vertical |
| Packaging | Box |
| REACH SVHC | No |
| RoHS | Compliant |
| Row Spacing | 10mm |
| Schedule B | 8504500000 |
| Series Resistance | 600mΩ |
| Shielding | Unshielded |
| Termination | Radial |
| Test Frequency | 10kHz |
| Tolerance | 30% |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| Weight | 5.000005g |
| Width | 13.2mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

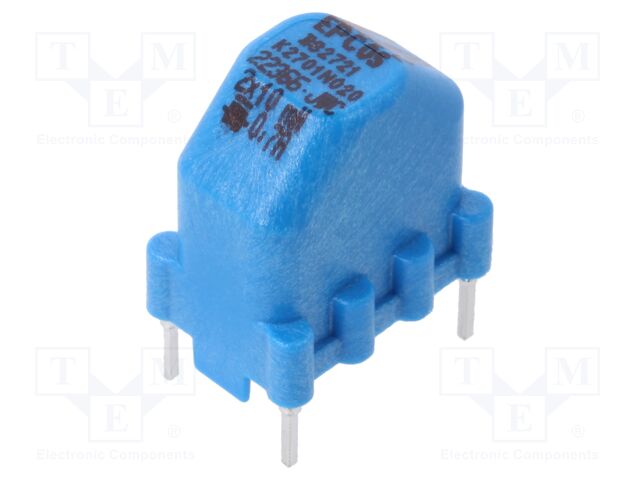

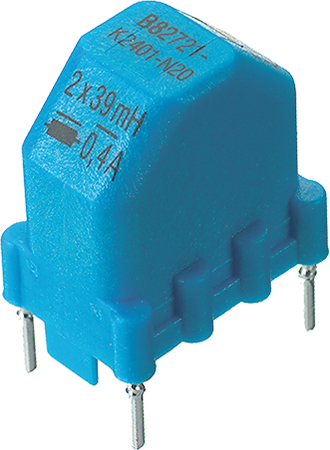

Images
