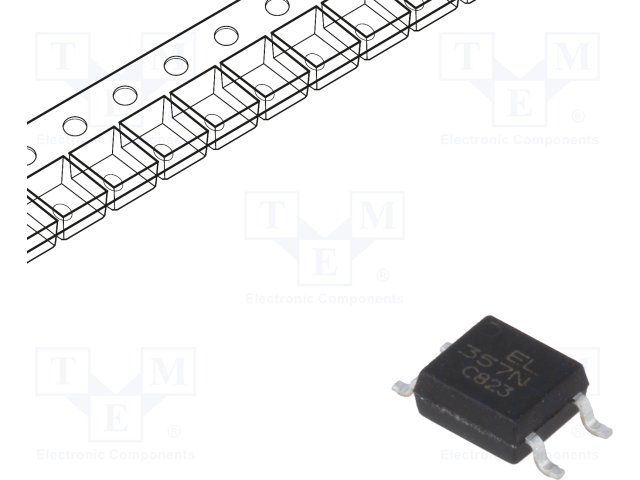

EL357N-G - Everlight

Optocoupler with transistor output; EVERLIGHT; EL357N-G; 1; 80 V; 4; SMD/SMT

Case/Package	SMD/SMT
China RoHS	Compliant
Collector Emitter Breakdown Voltage	80V
Collector Emitter Saturation Voltage	200mV
Collector Emitter Voltage (VCEO)	80V
Current Transfer Ratio	50%
Dark Current	100nA
Export Control Classification Number (ECCN) Code	EAR99
Forward Current	50mA
Forward Voltage	1.4V
Harmonized Tariff Schedule (HTS) Code	8541.40.80.00
Introduction Date	2008-09-22
Isolation Voltage	3750Vrms
Lead Free	Lead Free
Lifecycle Status	Production
Max Input Current	50mA
Max Operating Temperature	110°C
Max Output Voltage	80V
Max Power Dissipation	200mW
Min Operating Temperature	-55°C
Mount	Surface Mount
Number of Channels	1
Number of Elements	1
Number of Pins	4
Output Current per Channel	50mA
Output Voltage	80V
REACH SVHC	Yes
RoHS	Compliant

RoHS : Unconfirmed

REACH SVHC : Yes

Everlight EL357N-G | TME

TME

Production

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Lite-On	LTV-816S-L	Production
Lite-On	LTV-816S-TA1-L	Production
Toshiba	TLP181Y	Obsolete
Everlight	EL816(S)(TA)-V	Obsolete
Everlight	EL817(S1)(TU)-VG	Unknown
Everlight	EL817(S)(TA)-G	Obsolete
Toshiba	TLP181	Obsolete
Toshiba	TLP181(TPR)	Obsolete
Everlight	EL816(S1)(TA)	Obsolete
Everlight	EL817(S1)(TD)-VG	Unknown
