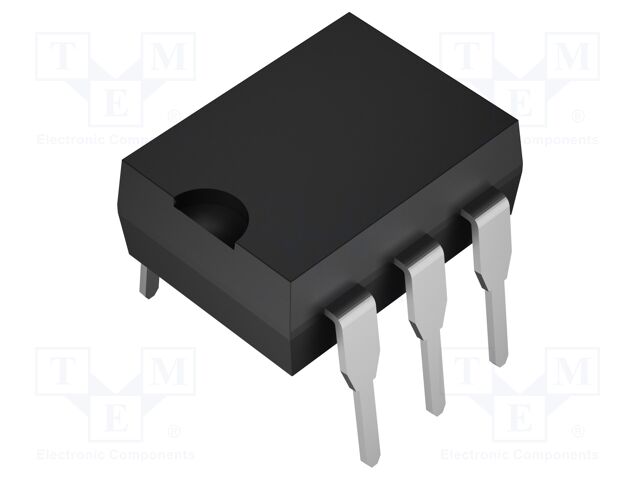

H11AA1 - Everlight
Optocoupler, Transistor Output, 1 Channel, DIP, 6 Pins, 60 mA, 5.3 kV, 20 %
Technical Details
| Case/Package | DIP |
| China RoHS | Compliant |
| Collector Emitter Breakdown Voltage | 80V |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 80V |
| Current Transfer Ratio | 20% |
| Dark Current | 50nA |
| Forward Current | 60mA |
| Forward Voltage | 1.5V |
| Isolation Voltage | 5000Vrms |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Max Collector Current | 50nA |
| Max Input Current | 60mA |
| Max Operating Temperature | 100°C |
| Max Output Voltage | 80V |
| Max Power Dissipation | 150mW |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 6 |
| Output Voltage | 80V |
| REACH SVHC | Yes |
| RoHS | Compliant |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
