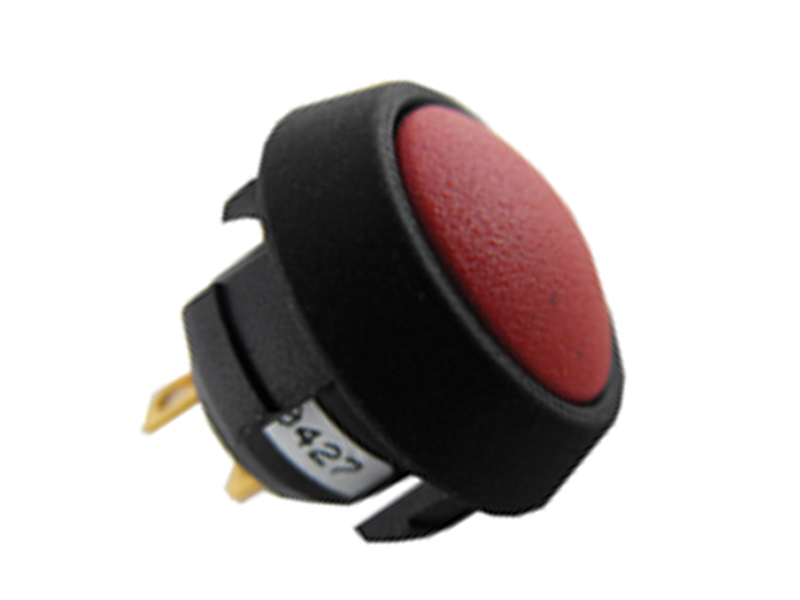

30-101 - Grayhill
Pushbutton Switch, SPST, Momentary, 0.15A, 24VDC, Solder Terminal, Panel Mount
Technical Details
| Actuator Length | 2.032mm |
| Actuator Material | Glass, Nylon |
| Approvals | CSA, UL |
| Color | Red |
| Contact Current Rating | 1A |
| Contact Plating | Gold |
| Contact Resistance | 25mΩ |
| Contact Voltage Rating (AC) | 115V |
| Country of Origin | Mainland China |
| Current Rating | 150mA |
| Depth | 17.53mm |
| Diameter | 17.5mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 500kcycles |
| Height | 13.72mm |
| Housing Material | Nylon |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.31 |
| Illumination Color | Red |
| Insulation Resistance | 1GΩ |
| Introduction Date | 2007-08-15 |
| Lead Free | Lead Free |
| Length | 17.256mm |
| Life (Cycles) | 500kcycles |
| Lifecycle Status | Production |
| Max Current Rating | 150mA |
| Max Operating Temperature | 80°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 500kcycles |
| Min Operating Temperature | -40°C |
| Mount | Panel, Snap-In |
| Number of Poles | 1 |
| Packaging | Bulk |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | EPOXY TERMINAL SEALED |
| Switch Function | Off-Mom |
| Terminal Material | Brass |
| Termination | Solder |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 24V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
