34ADP13B1M1QT - Grayhill
Switch Toggle ON None ON DPDT Round Toggle Solder Lug 5A 250VAC 28VDC Panel Mount with Threads
Technical Details
| Actuator Length | 13.97mm |
| Actuator Material | Brass |
| Contact Current Rating | 2A |
| Contact Plating | Silver |
| Contact Resistance | 10mΩ |
| Contact Voltage Rating (AC) | 250V |
| Country of Origin | Mainland China |
| Current Rating | 5A |
| Depth | 11.43mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 40kcycles |
| Height | 8.89mm |
| Housing Material | Stainless Steel |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.65 |
| Illumination Type | Non-Illuminated |
| Insulation Resistance | 1GΩ |
| Introduction Date | 2014-06-05 |
| Length | 12.7mm |
| Lifecycle Status | Production |
| Max Current Rating | 5A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 28V |
| Min Operating Temperature | -30°C |
| Mount | Panel |
| Packaging | Bulk |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | EPOXY |
| Switch Function | On-On |
| Termination | Solder |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| Voltage Rating (DC) | 28V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

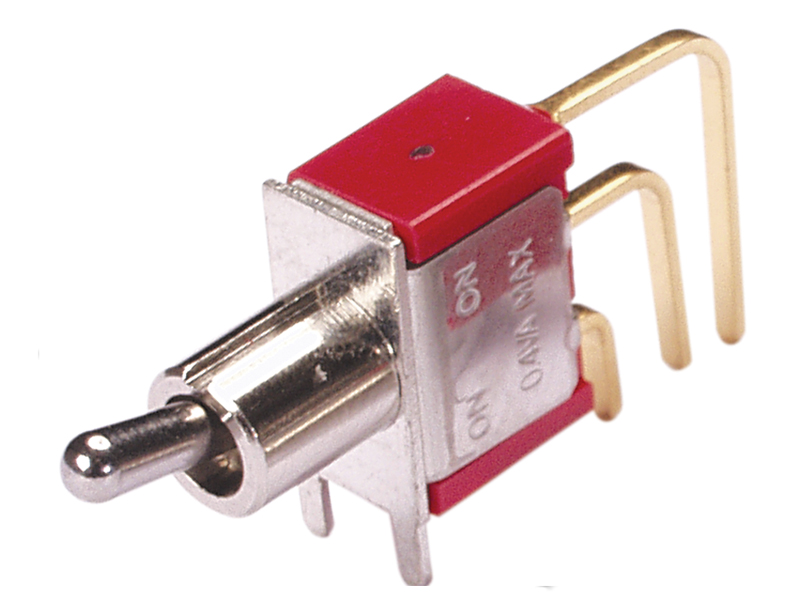

Images
Sager Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| C&K Components | Obsolete | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| Nidec Copal | Production | ||
| Nidec Copal | Production | ||
| Nidec Copal | Production | ||
| Nidec Copal | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| E-Switch | Production |
