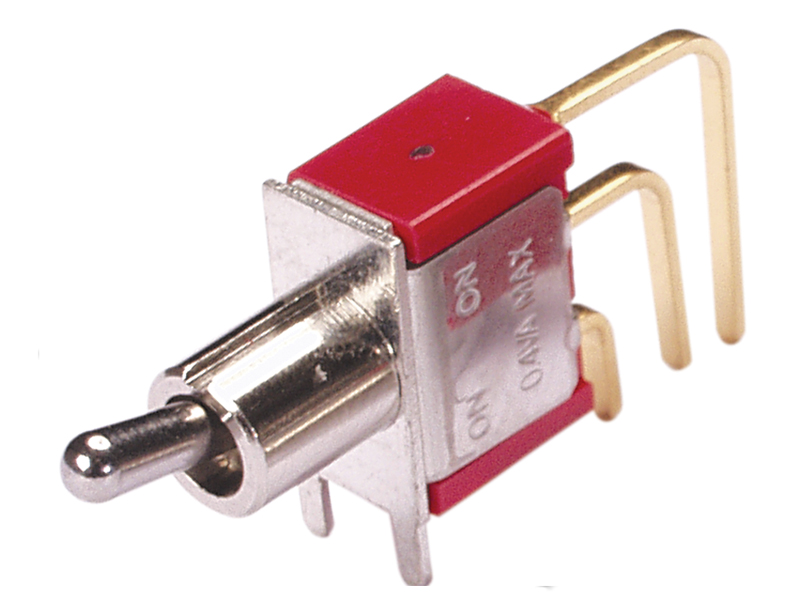

34ADP18T7V3RT - Grayhill
Toggle Switch, Miniature, DPDT, ON-NONE-ON, vertical bracket, PC Mount, RoHS Compliant
Technical Details
| Actuator Length | 17.4498mm |
| Actuator Material | Brass |
| Contact Current Rating | 20mA |
| Contact Plating | Gold |
| Contact Resistance | 10mΩ |
| Contact Voltage Rating (AC) | 20V |
| Depth | 11.43mm |
| Electrical Life | 40kcycles |
| Height | 16.002mm |
| Housing Material | Stainless Steel |
| Illumination Type | Non-Illuminated |
| Insulation Resistance | 1GΩ |
| Length | 15.748mm |
| Lifecycle Status | Production |
| Max Current Rating | 20mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 20V |
| Max Voltage Rating (DC) | 20V |
| Min Operating Temperature | -30°C |
| Mount | Brackets, Panel |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | EPOXY |
| Switch Function | On-On |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 20V |
| Voltage Rating (DC) | 20V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images
Sager Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Nidec Copal | Production | ||
| Knitter Switch | Unknown | ||
| E-Switch | Production | ||
| E-Switch | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Production |
