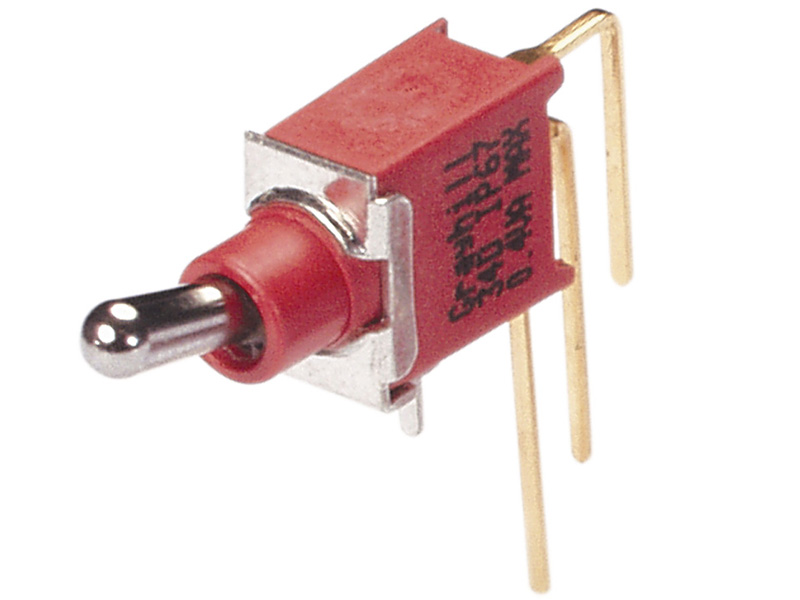

34DWMSP13B4M7RT - Grayhill
Toggle Switch, Sub-Miniature, sealed, SPDT, ON-NONE-ON, right angle horizontal m
Technical Details
| Actuator Length | 8.6868mm |
| Actuator Material | Brass, Chrome |
| Contact Current Rating | 20mA |
| Contact Plating | Gold |
| Contact Voltage Rating (AC) | 20V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 30kcycles |
| Height | 8.13mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.65 |
| Illumination Type | Non-Illuminated |
| Introduction Date | 2007-08-15 |
| Length | 9.27mm |
| Lifecycle Status | Production |
| Max Current Rating | 20mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 20V |
| Max Voltage Rating (DC) | 20V |
| Mechanical Life | 30kcycles |
| Min Operating Temperature | -30°C |
| Mount | PC Mount, Through Hole, Vertical |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | Dust Tight, IP67, Waterproof |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | EPOXY TERMINAL SEALED, IP67 |
| Switch Function | On-On |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 20V |
| Voltage Rating (DC) | 20V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
