Technical Details
| Actuator Length | 5.08mm |
| Actuator Material | Nylon |
| Approvals | UL |
| Color | Red |
| Contact Current Rating | 250mA |
| Contact Material | Brass, Gold |
| Contact Plating | Gold |
| Contact Resistance | 25mΩ |
| Contact Voltage Rating (AC) | 115V |
| Contact Voltage Rating (DC) | 28V |
| Country of Origin | Mainland China |
| Current Rating | 250mA |
| Depth | 15.24mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 500kcycles |
| Height | 8.33mm |
| Housing Material | Polyester |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.70.00 |
| Insulation Resistance | 1GΩ |
| Introduction Date | 1999-01-01 |
| Lead Free | Lead Free |
| Length | 12.7mm |
| Lifecycle Status | Production |
| Max Current Rating | 150mA |
| Max Operating Temperature | 125°C |
| Max Voltage Rating (AC) | 220V |
| Max Voltage Rating (DC) | 28V |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Poles | 1 |
| Operating Force | 3.61N |
| Orientation | Right Angle |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switch Function | On-Mom |
| Terminal Material | Brass |
| Termination | PC Pins |
| Throw Configuration | SPDT |
| Voltage Rating | 220V |
| Voltage Rating (AC) | 115V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

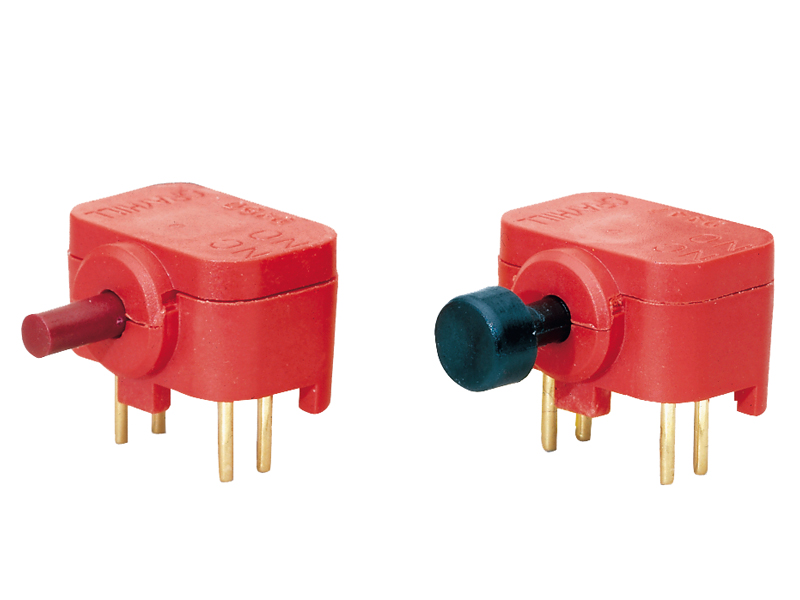

Images
