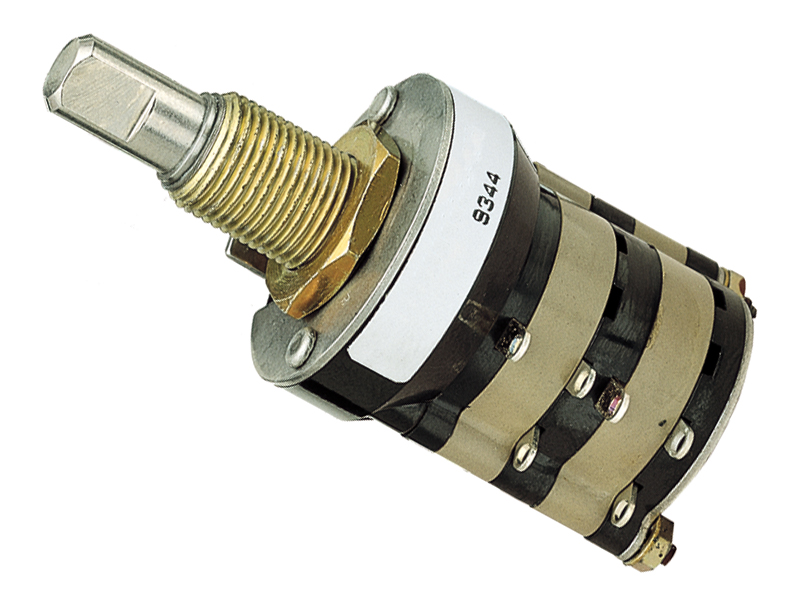

42US36-04-1-10N - Grayhill
Switch Rotary SP10T 10 Flatted Shaft Solder Lug 1A 115VAC 115VDC
Technical Details
| Actuator Length | 11.1mm |
| Contact Current Rating | 1A |
| Contact Material | Silver |
| Contact Plating | Tin |
| Contact Style | Non-Shorting |
| Contact Voltage Rating (AC) | 115V |
| Country of Origin | USA |
| Current Rating | 1A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 6kcycles |
| Height | 52.4mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.20 |
| Index Angle | 36° |
| Index Stops | Continuous |
| Introduction Date | 2007-05-01 |
| Length | 25.4mm |
| Lifecycle Status | Production |
| Max Current Rating | 1A |
| Max Voltage Rating (DC) | 28V |
| Mechanical Life | 100kcycles |
| Mount | Panel |
| Number of Circuits | 4 |
| Number of Decks | 4 |
| Number of Poles per Deck | 1 |
| Number of Positions | 10 |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | SHAFT AND PANEL SEALED |
| Termination | Solder |
| Throw Configuration | SP10T |
| Voltage Rating (AC) | 125V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
