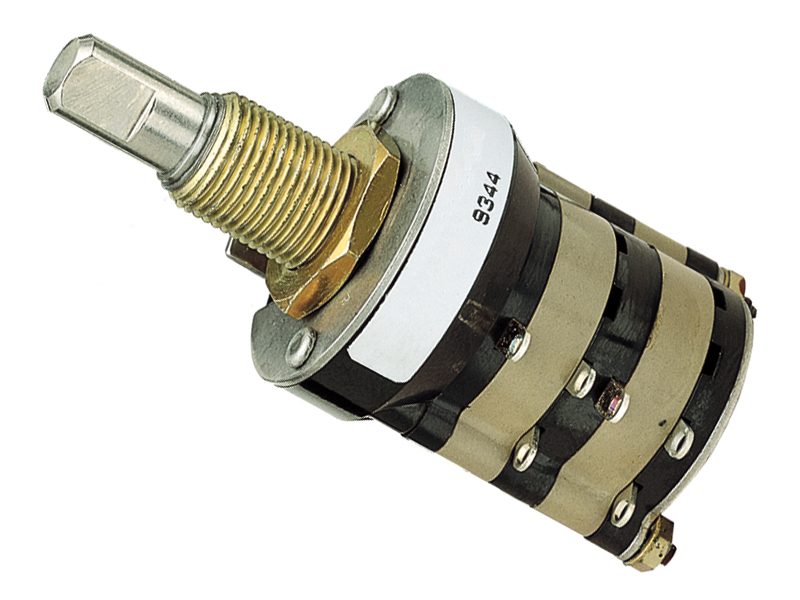

44HS30-08-1-08N - Grayhill
Switch Rotary SP8T 8 Flatted Shaft Solder Lug 1A 115VAC 115VDC
Technical Details
| Case/Package | 125 |
| Contact Current Rating | 75mA |
| Contact Material | Silver |
| Contact Plating | Tin |
| Contact Voltage Rating (AC) | 115V |
| Country of Origin | USA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 25kcycles |
| Height | 93.9mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.20 |
| Index Angle | 30° |
| Introduction Date | 2007-05-01 |
| Length | 29.51mm |
| Lifecycle Status | Production |
| Max Current Rating | 250mA |
| Max Voltage Rating (AC) | 115V |
| Max Voltage Rating (DC) | 28V |
| Mechanical Life | 100kcycles |
| Mount | Panel |
| Number of Circuits | 8 |
| Number of Positions | 8 |
| Packaging | Bulk |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | SHAFT AND PANEL SEALED |
| Termination | Solder |
| Throw Configuration | SP8T |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
