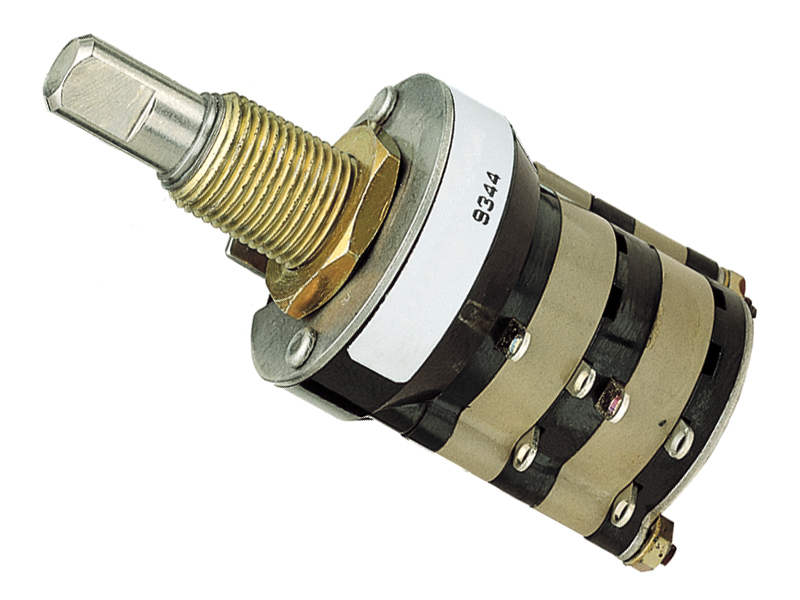

44M60-06-2-03N - Grayhill
Rotary Switch, Military 85°C, 60°, 6 deck, 2 pole/deck, 2 positions/pole, non-shorting
Technical Details
| Contact Current Rating | 75mA |
| Contact Material | Silver |
| Contact Plating | Silver |
| Contact Voltage Rating (AC) | 115V |
| Country of Origin | USA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 25kcycles |
| Height | 76.33mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.20 |
| Index Angle | 60° |
| Introduction Date | 2003-02-01 |
| Length | 29.51mm |
| Lifecycle Status | Production |
| Max Current Rating | 25mA |
| Max Voltage Rating (AC) | 115V |
| Max Voltage Rating (DC) | 28V |
| Mechanical Life | 100kcycles |
| Mount | Panel |
| Number of Circuits | 6 |
| Number of Positions | 3 |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Termination | Solder |
| Throw Configuration | DP3T |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
