Technical Details
| Actuator Length | 5.207mm |
| Color | Black |
| Contact Current Rating | 125mA |
| Contact Material | Brass, Bronze |
| Contact Plating | Silver |
| Contact Resistance | 25mΩ |
| Contact Voltage Rating (AC) | 220V |
| Country of Origin | USA |
| Current Rating | 250mA |
| Depth | 20.32mm |
| Dielectric Material | Nylon |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 250kcycles |
| Height | 35.99mm |
| Housing Material | Zinc |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.70.00 |
| Insulation Resistance | 1GΩ |
| Introduction Date | 1999-01-01 |
| Length | 25.81mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Panel, Snap-In, Through Hole |
| Operating Force | 6N |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switch Function | On-Mom |
| Terminal Material | Bronze |
| Termination | PC Pins |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 115V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

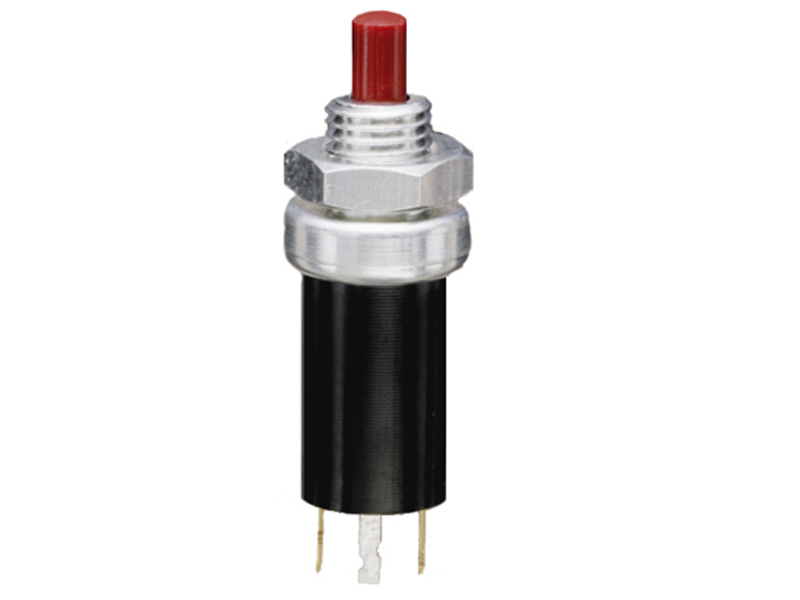

Images
Sager Electronics
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Sager Electronics |
US: 0
|
$ | ||||||||
| Mouser |
US: 0
|
$ | 25.47 | 24.33 | 16.38 | 15.82 | 14.80 | 14.80 | ||
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Component Stockers USA |
US: 590
|
$ | 246.18 | 246.18 | 246.18 | 246.18 | 246.18 | 246.18 | ||
