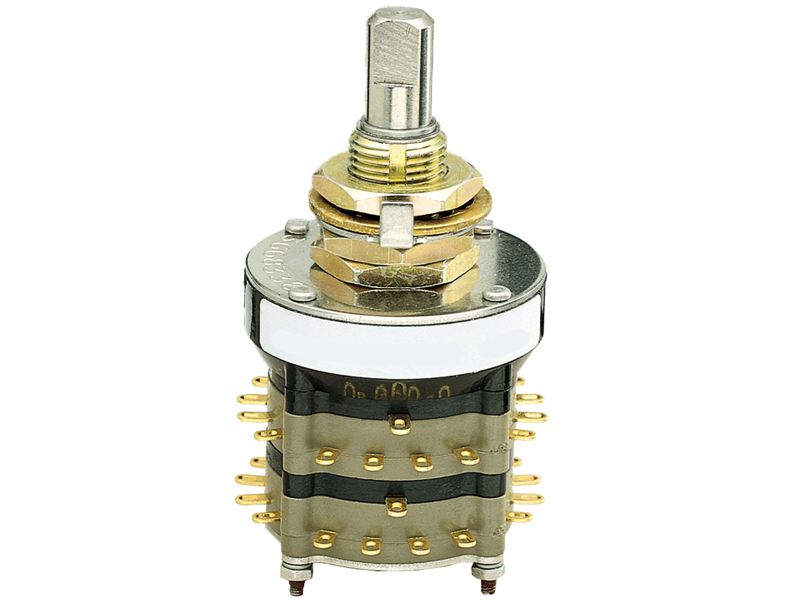

53M15-04-2-02N - Grayhill
Rotary Switch, Military, 15°, 4 deck, 2 pole/deck, 2 positions/pole, non-shorting
Technical Details
| Contact Current Rating | 250mA |
| Contact Material | Silver |
| Contact Plating | Gold |
| Contact Voltage Rating (AC) | 115V |
| Country of Origin | USA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 10kcycles |
| Height | 47.83mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.20 |
| Index Angle | 15° |
| Introduction Date | 2003-02-01 |
| Length | 32.54mm |
| Lifecycle Status | Production |
| Max Current Rating | 250mA |
| Max Voltage Rating (DC) | 30V |
| Mount | Panel |
| Number of Circuits | 4 |
| Number of Positions | 2 |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Termination | Solder |
| Throw Configuration | DPDT |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
