Electromechanical  >  Switches  >  Rotary Switches

Grayhill - 56S30-01-1-02S

56S30-01-1-02S - Grayhill

Flatted (3.17mm Dia) 56 SPDT 1 Rotary Switch 9.53mm 200mA 600VAC V 2.520-6.481gfm

 Datasheets

Technical Details

Actuator Length 9.525mm
Contact Current Rating 200mA
Contact Material Brass
Contact Plating Gold
Contact Resistance 100mΩ
Contact Style Shorting
Contact Voltage Rating (AC) 115V
Current Rating 200mA
Electrical Life 10kcycles
Height 9.01mm
Index Angle 30°
Index Stops Fixed
Insulation Resistance 10GΩ
Length 12.7mm
Lifecycle Status Production
Max Current Rating 200mA
Max Voltage Rating (AC) 115V
Max Voltage Rating (DC) 30V
Mount Panel
Number of Circuits 1
Number of Decks 1
Number of Poles per Deck 1
Number of Positions 2
REACH SVHC Yes
RoHS Compliant
Sealable SHAFT AND PANEL SEALED
Terminal Material Brass
Termination Solder
Throw Configuration SPDT
Voltage Rating (AC) 115V
Voltage Rating (DC) 30V

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

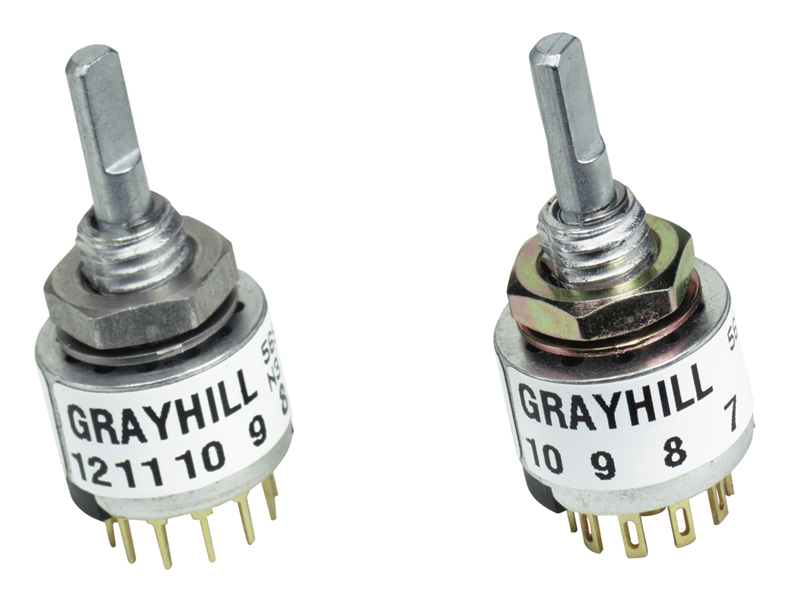

Grayhill 56S30-01-1-02S | Sager Electronics

Sager Electronics

Datasheets

 Mouser
 DigiKey
 Sager Electronics

Lifecycle Status Indicator

   Production

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Grayhill
56B36-01-1-02S
Production
Grayhill
56S30-01-2-02N
Production
Grayhill
56A30-01-1-02S
Production
Grayhill
56A36-01-2-02N
Production
Grayhill
56B30-01-2-02N
Production
Grayhill
56S36-01-1-02S
Production
Grayhill
56BS30-01-2-02N
Production
Grayhill
56A30-01-1-02N
Production
Grayhill
56B30-01-1-02N
Production
Grayhill
56BS30-01-4-02S
Production

See more alternatives See less alternatives

Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Mouser
706-56S30-01-1-02S
US: 8
 $ 32.43 27.27 21.36 20.80 19.69 19.69
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
56S30-01-1-02S-ND
DE: 0
 $ 22.5528 22.5528 22.5528 22.5528
 Historical Pricing  Historical Stock Levels
Quantity
Location
Sager Electronics
56S30-01-1-02S
US: 0
 $ 20.91 20.27 14.94 14.94
 Historical Pricing  Historical Stock Levels
Quantity
Location
Onlinecomponents.com
56S30-01-1-02S
US: 0
 $ 23.07 20.58 19.39 15.48 13.95 13.95
 Historical Pricing  Historical Stock Levels
Quantity
Location
Master Electronics
56S30-01-1-02S
US: 0
 $ 23.07 20.58 19.39 15.48 13.95 13.95
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet
56S30-01-1-02S
US: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Newark
56S30-01-1-02S
US: 0
 $ 30.24 25.54 23.64 23.64
 Historical Pricing  Historical Stock Levels
Quantity
Location

Non-Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Component Stockers USA
56S30-01-1-02S
US: 12
 $ 27.12 21.13 21.13 21.13 21.13 21.13
 Historical Pricing  Historical Stock Levels
Quantity
Location
Fly-Wing Technology
56S30-01-1-02S
HK: 2347
 $ 16.144 15.2302 15.2302 14.3681 12.7876 12.7876
 Historical Pricing  Historical Stock Levels
Quantity
Location
