56S36-01-1-02N - Grayhill
Rotary Switch, 36 Deg, # Of Decks: 01, Poles/deck: 1, Positions/pole: 02, Conta
Technical Details
| Actuator Length | 9.525mm |
| Actuator Material | Zinc |
| Contact Current Rating | 200mA |
| Contact Material | Brass |
| Contact Plating | Gold |
| Contact Resistance | 100mΩ |
| Contact Style | Non-Shorting |
| Contact Voltage Rating (AC) | 115V |
| Country of Origin | Mainland China |
| Current Rating | 200mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 10kcycles |
| Height | 9.01mm |
| Housing Material | Zinc |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.20 |
| Index Angle | 36° |
| Index Stops | Fixed |
| Insulation Resistance | 10GΩ |
| Introduction Date | 1999-01-01 |
| Lead Free | Lead Free |
| Length | 12.7mm |
| Lifecycle Status | Production |
| Max Current Rating | 200mA |
| Max Voltage Rating (AC) | 115V |
| Max Voltage Rating (DC) | 30V |
| Mount | Panel |
| Number of Circuits | 1 |
| Number of Decks | 1 |
| Number of Poles per Deck | 1 |
| Number of Positions | 2 |
| Orientation | Straight |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | SHAFT AND PANEL SEALED |
| Terminal Material | Brass |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 115V |
| Voltage Rating (DC) | 30V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

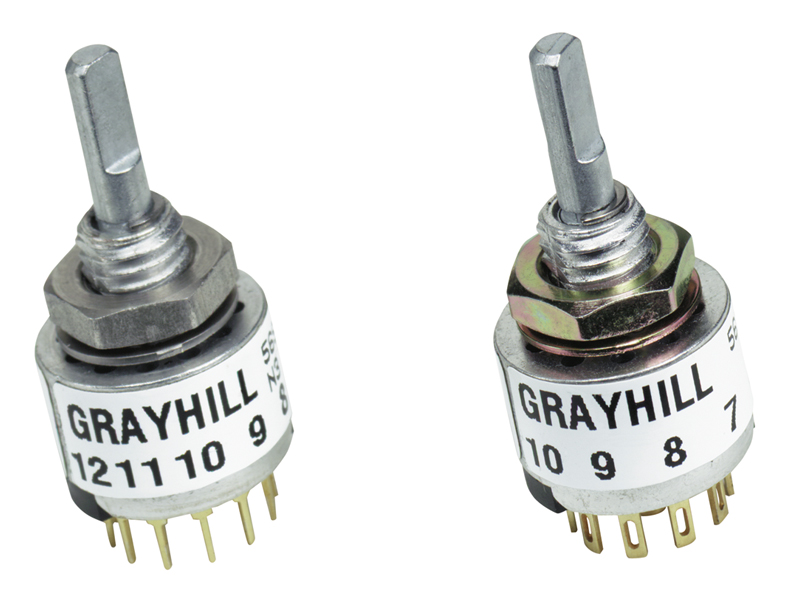

Images
