Electromechanical > Switches > Rotary Switches

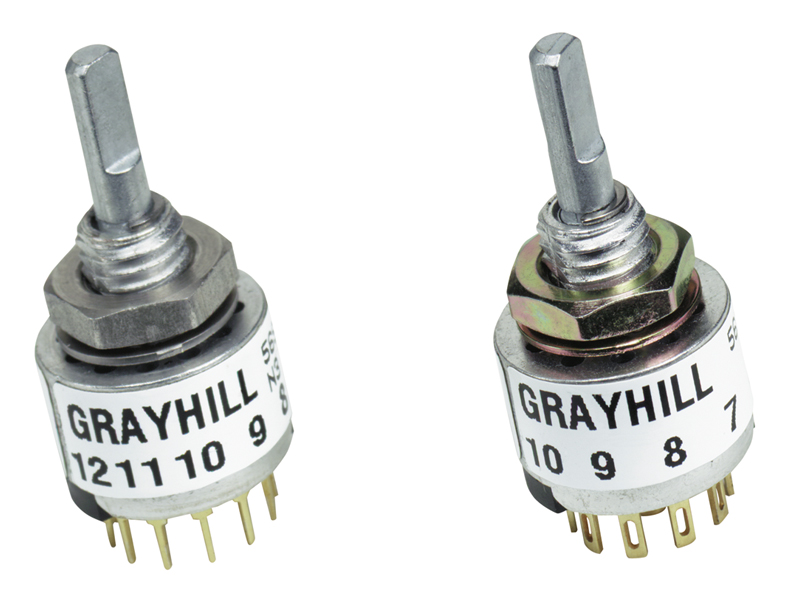

56S36-01-1-02S - Grayhill

Rotary Switch, Shaft/panel seal, 36° , 1 deck, 1 pole/deck, 2 position/pole,

Actuator Length	9.525mm
Contact Current Rating	200mA
Contact Material	Brass
Contact Plating	Gold
Contact Resistance	100mΩ
Contact Style	Shorting
Contact Voltage Rating (AC)	115V
Country of Origin	Mainland China
Current Rating	200mA
Export Control Classification Number (ECCN) Code	EAR99
Electrical Life	10kcycles
Height	9.01mm
Harmonized Tariff Schedule (HTS) Code	8536.50.90.20
Index Angle	36°
Index Stops	Fixed
Insulation Resistance	10GΩ
Introduction Date	1999-01-01
Length	12.7mm
Lifecycle Status	Production
Max Current Rating	200mA
Max Voltage Rating (AC)	115V
Max Voltage Rating (DC)	30V
Mount	Panel
Number of Circuits	1
Number of Decks	1
Number of Poles per Deck	1
Number of Positions	2
REACH SVHC	Yes
RoHS	Compliant
Sealable	SHAFT AND PANEL SEALED
Terminal Material	Brass
Termination	Solder
Throw Configuration	SPDT
Voltage Rating (AC)	115V
Voltage Rating (DC)	30V

RoHS : Unconfirmed

REACH SVHC : Yes
