Grayhill - 56S36-01-2-02N

56S36-01-2-02N - Grayhill

Rotary Switch, 36 Deg, # Of Decks: 01, Poles/deck: 2, Positions/pole: 02, Conta

 Datasheets

Technical Details

Actuator Length 9.525mm
Contact Current Rating 200mA
Contact Material Brass
Contact Plating Gold
Contact Resistance 100mΩ
Contact Style Non-Shorting
Contact Voltage Rating (AC) 115V
Current Rating 200mA
Electrical Life 10kcycles
Height 9.01mm
Index Angle 36°
Index Stops Fixed
Insulation Resistance 10GΩ
Lead Free Lead Free
Length 12.7mm
Lifecycle Status Production
Max Current Rating 200mA
Max Voltage Rating (AC) 115V
Max Voltage Rating (DC) 30V
Mount Panel
Number of Circuits 1
Number of Decks 1
Number of Poles per Deck 2
Number of Positions 2
REACH SVHC Yes
RoHS Compliant
Sealable SHAFT AND PANEL SEALED
Terminal Material Brass
Termination Solder
Throw Configuration DPDT
Voltage Rating (AC) 115V
Voltage Rating (DC) 30V

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

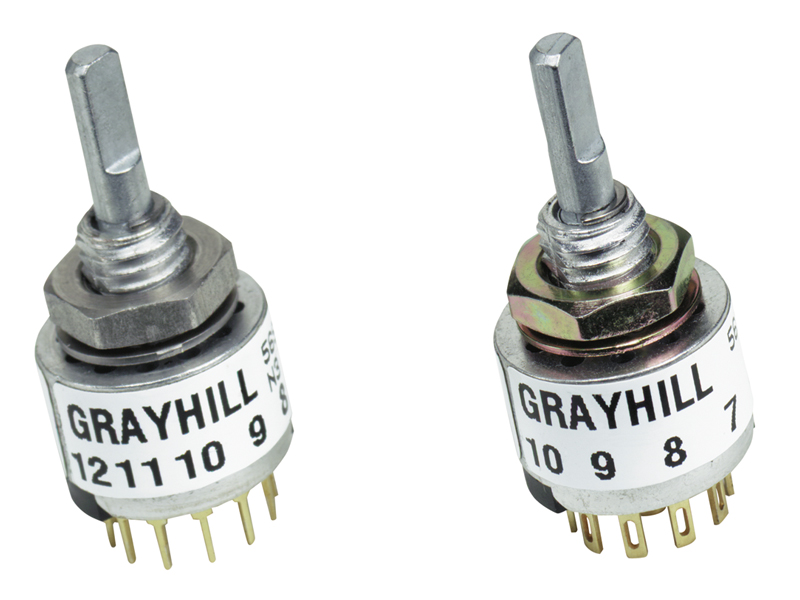

Grayhill 56S36-01-2-02N | Sager Electronics
