76SB02ST - Grayhill
DIP Switch 2 Position On Off Single Pole 0.15 Amp @ 30 Volt Raised Rocker PC
Technical Details
| Actuator Length | 580µm |
| Body Material | Thermoplastic |
| Capacitance | 2pF |
| Contact Current Rating | 150mA |
| Contact Material | Gold |
| Contact Plating | Gold |
| Contact Resistance | 100mΩ |
| Country of Origin | Mainland China |
| Current Rating | 150mA |
| Depth | 9.65mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 2kcycles |
| Height | 7.42mm |
| Housing Material | Thermoplastic |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.65 |
| Insulation Resistance | 1kΩ |
| Introduction Date | 2007-04-30 |
| Lead Free | Lead Free |
| Length | 9.65mm |
| Lifecycle Status | Production |
| Max Current Rating | 150mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 2kcycles |
| Min Operating Temperature | -40°C |
| Mount | PCB, Through Hole |
| Number of Circuits | 2 |
| Number of Positions | 2 |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | TOP TAPE SEALED |
| Terminal Pitch | 2.54mm |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 30V |
| Washable | Yes |
| Width | 7.1mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

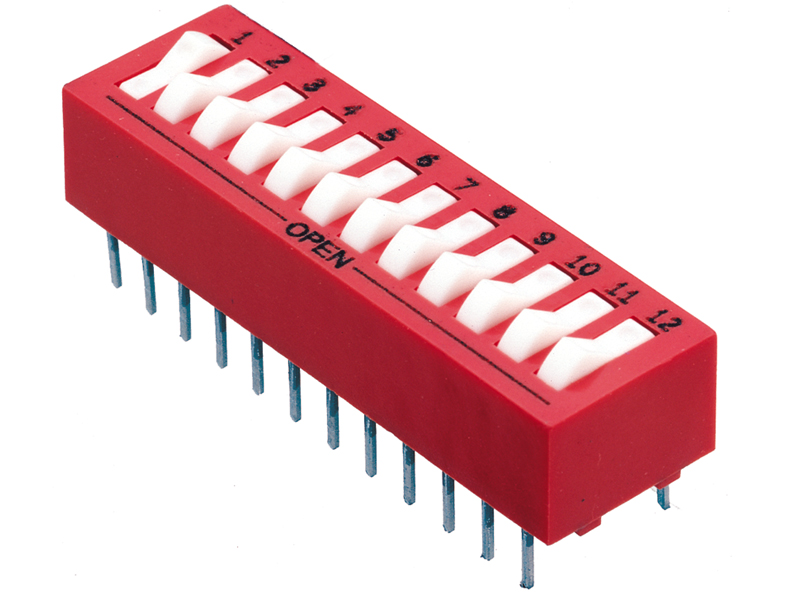

Images
