Grayhill - 78B04T

78B04T - Grayhill

Switch DIP OFF ON SPST 4 Raised Slide 0.15A 30VDC PC Pins 2000Cycles 2.54mm Thru-Hole Tube

 Datasheets

Technical Details

Actuator Length 1.27mm
Body Material Thermoplastic
Contact Current Rating 150mA
Contact Material Brass
Contact Plating Gold
Contact Resistance 100mΩ
Country of Origin Mainland China
Depth 9.65mm
Dielectric Material Thermoplastic
Export Control Classification Number (ECCN) Code EAR99
Electrical Life 2kcycles
Height 6.73mm
Harmonized Tariff Schedule (HTS) Code 8536.50.90.65
Insulation Resistance 1GΩ
Introduction Date 2007-04-30
Lead Free Lead Free
Lead Length 2.54mm
Length 12.2mm
Lifecycle Status Production
Material Thermoplastic
Max Current Rating 150mA
Max Operating Temperature 85°C
Max Voltage Rating (DC) 30V
Mechanical Life 2kcycles
Min Operating Temperature -40°C
Mount PCB, Through Hole
Number of Circuits 4
Number of Poles 1
Number of Positions 4
Pitch 2.54mm
Radiation Hardening No
REACH SVHC Yes
RoHS Compliant
Terminal Pitch 2.54mm
Termination PC Pins
Throw Configuration SPST
Voltage Rating (DC) 30V
Washable No

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

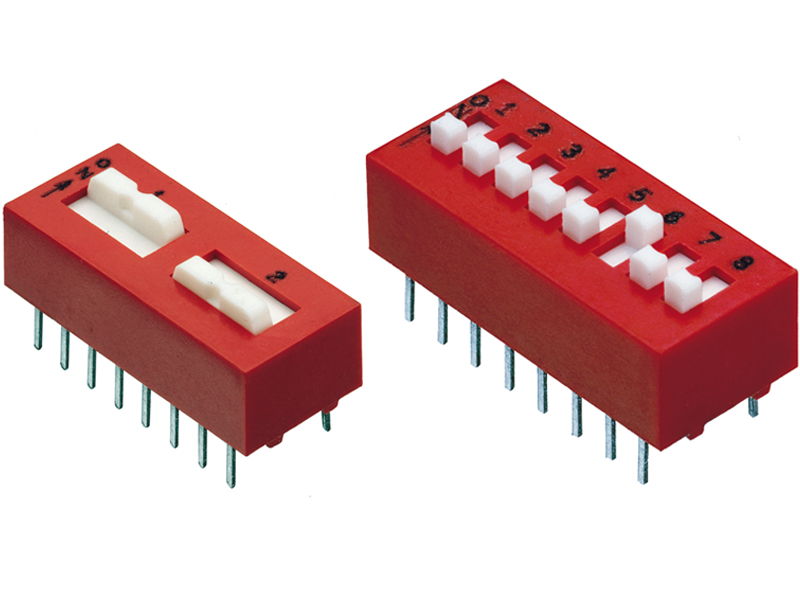

Grayhill 78B04T | Sager Electronics

Sager Electronics

Datasheets

 Master Electronics
 Sager Electronics
 Avnet

Lifecycle Status Indicator

   Production

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Grayhill
78B04ST
Production
Grayhill
78B04S
Obsolete
Grayhill
78B04
Obsolete
CTS Components
209-4LPSFD
Production
CTS Components
209-4LPSTD
Production
TE Connectivity
5161390-4
Production
Diptronics
DS-04-V
Obsolete
APEM
DIR04HT
Production
CTS Components
206-4
Production
TE Connectivity
4-5435166-9
Production

See more alternatives See less alternatives
