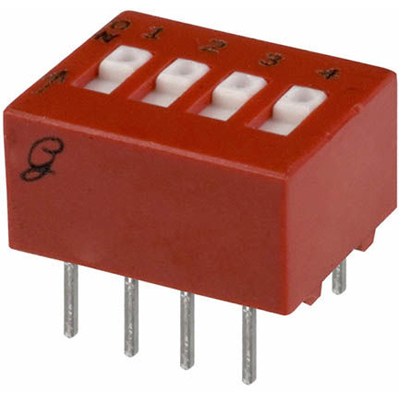

78RB04T - Grayhill
Switch DIP OFF ON SPST 4 Recessed Slide 0.15A 30VDC PC Pins 2000Cycles 2.54mm Thru-Hole Tube
Technical Details
| Actuator Length | 0m |
| Body Material | Thermoplastic |
| Contact Current Rating | 4A |
| Contact Plating | Gold |
| Current Rating | 150mA |
| Electrical Life | 2kcycles |
| Height | 6.73mm |
| Lead Free | Lead Free |
| Length | 12.2mm |
| Lifecycle Status | Production |
| Max Current Rating | 150mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 2kcycles |
| Min Operating Temperature | -40°C |
| Mount | PCB, Through Hole |
| Number of Circuits | 4 |
| Number of Poles | 1 |
| Number of Positions | 4 |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Terminal Pitch | 2.54mm |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 30V |
| Washable | No |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
