Electromechanical  >  Switches  >  DIP Switches

Grayhill - 90HBW08PT

90HBW08PT - Grayhill

Switch DIP ON OFF SPST 8 Recessed Slide 0.1A 30VDC Gull Wing 2000Cycles/Switch 2.54mm SMD Tube

 Datasheets

Technical Details

Actuator Length 0m
Actuator Material Polyethylene
Body Material Thermoplastic
Capacitance 2pF
Contact Current Rating 100mA
Contact Material Gold
Contact Plating Gold
Contact Resistance 20mΩ
Country of Origin Mainland China
Depth 10.03mm
Dielectric Material Polyethylene
Export Control Classification Number (ECCN) Code EAR99
Electrical Life 2kcycles
Flammability Rating UL94 V-0
Height 4.19mm
Housing Material Polyethylene
Harmonized Tariff Schedule (HTS) Code 8536.50.90.65
Insulation Resistance 5GΩ
Introduction Date 2007-04-30
Lead/Base Style Gull Wing
Lead Free Lead Free
Length 22.1mm
Lifecycle Status Production
Max Current Rating 100mA
Max Operating Temperature 85°C
Max Voltage Rating (DC) 6V
Mechanical Life 2kcycles
Min Operating Temperature -40°C
Mount Surface Mount
Number of Circuits 8
Number of Poles 1
Number of Positions 8
Pitch 2.54mm
Radiation Hardening No
REACH SVHC Yes
RoHS Compliant
Sealable MOISTURE PROOF, TOP TAPE SEALED
Terminal Pitch 2.54mm
Termination Gull Wing
Throw Configuration SPST
Voltage Rating (DC) 24V
Washable Yes

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

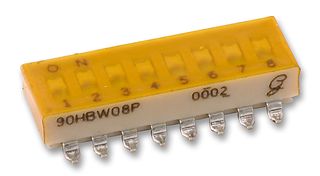

Images

Grayhill 90HBW08PT | Future Electronics

Future Electronics

Datasheets

 Master Electronics
 CoreStaff
 Avnet

Lifecycle Status Indicator

   Production

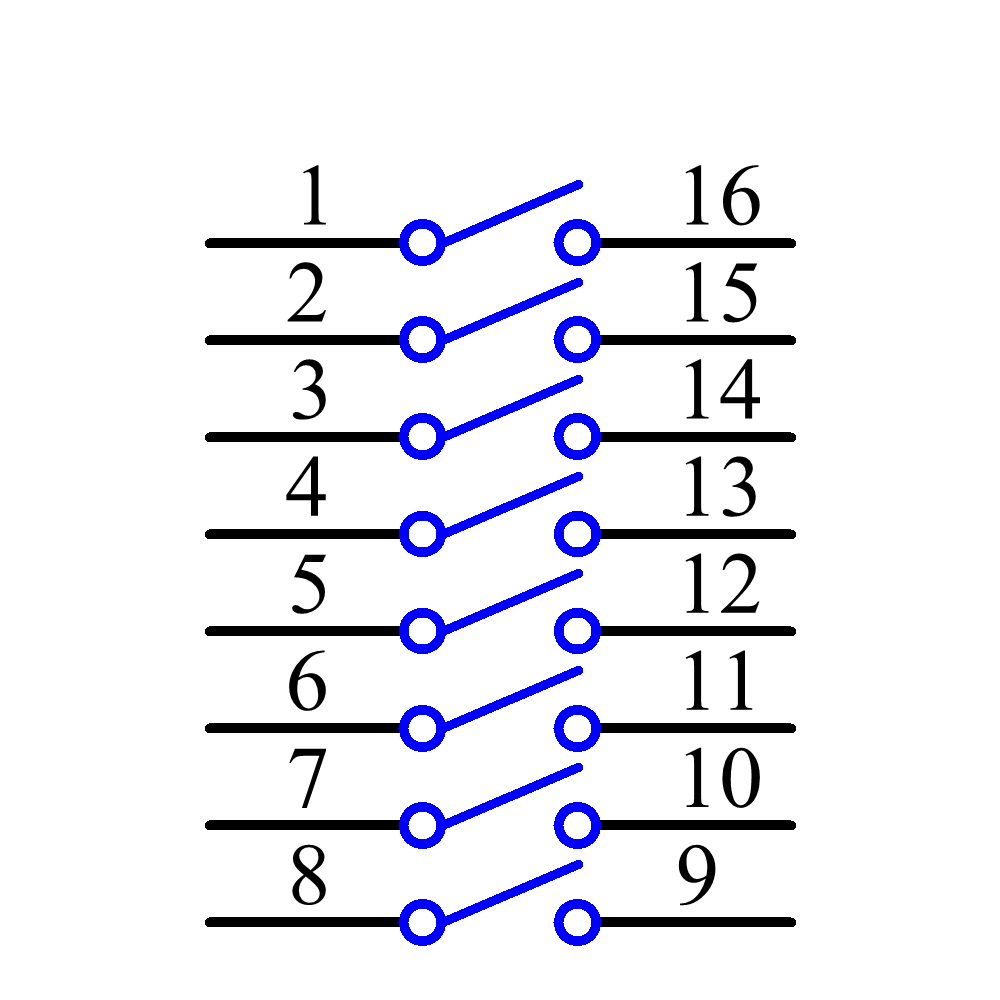

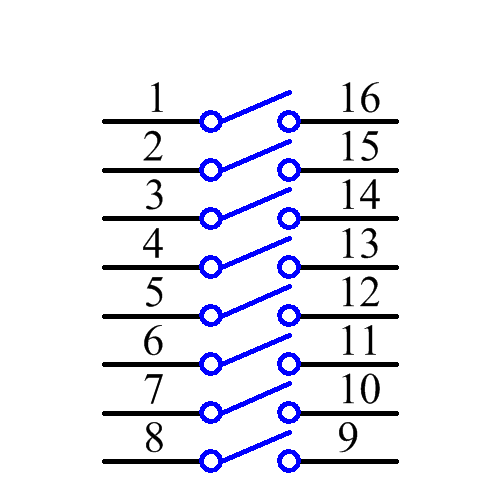

Symbol

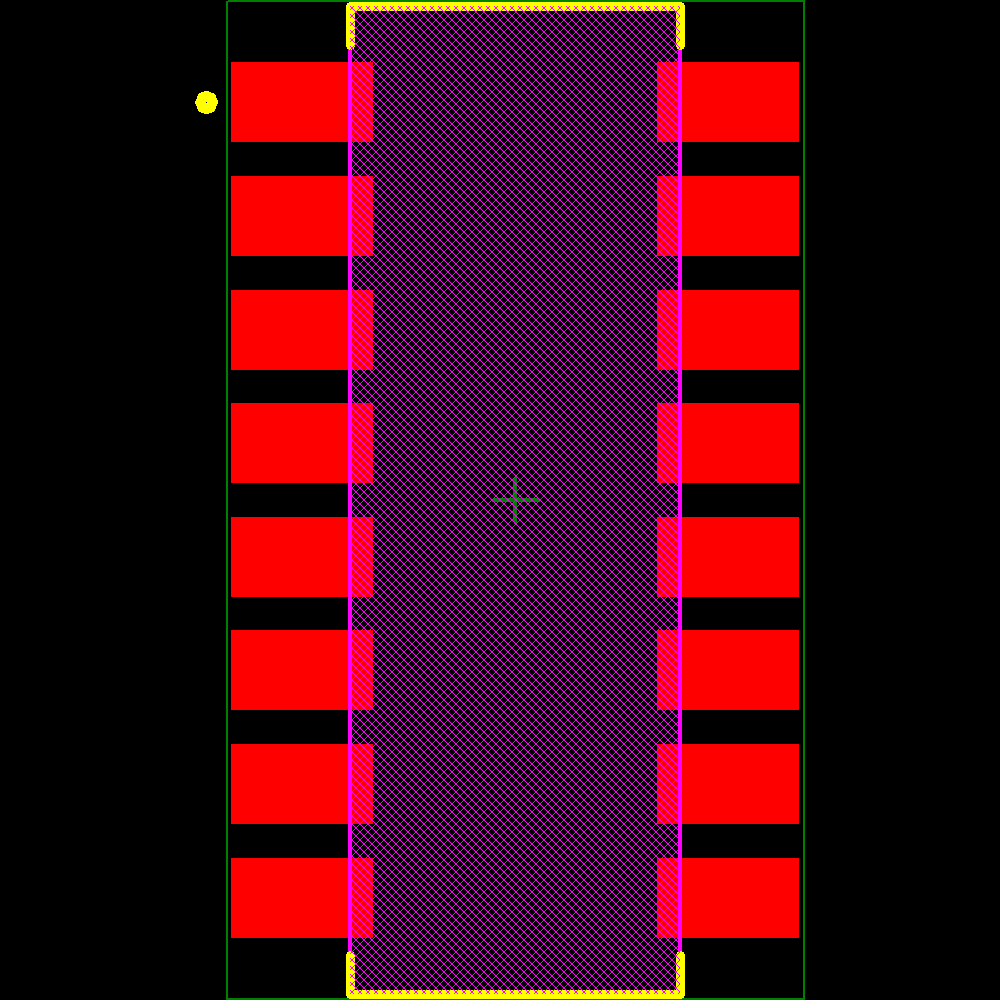

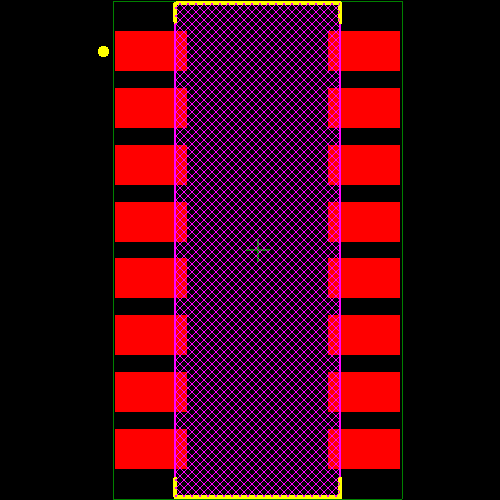

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Grayhill
90HBW08P
Obsolete
Grayhill
90HBW08PRT
Production
Grayhill
90HBW08RT
Production
Grayhill
90HBW08T
Production
Grayhill
90HBW08PR
Obsolete
Grayhill
90HBW08R
Obsolete
Grayhill
90HBW08
Obsolete
Grayhill
90HBJ08PRT
Production
Grayhill
90HBJ08PT
Production
Grayhill
90HBJ08RT
Production

See more alternatives See less alternatives
