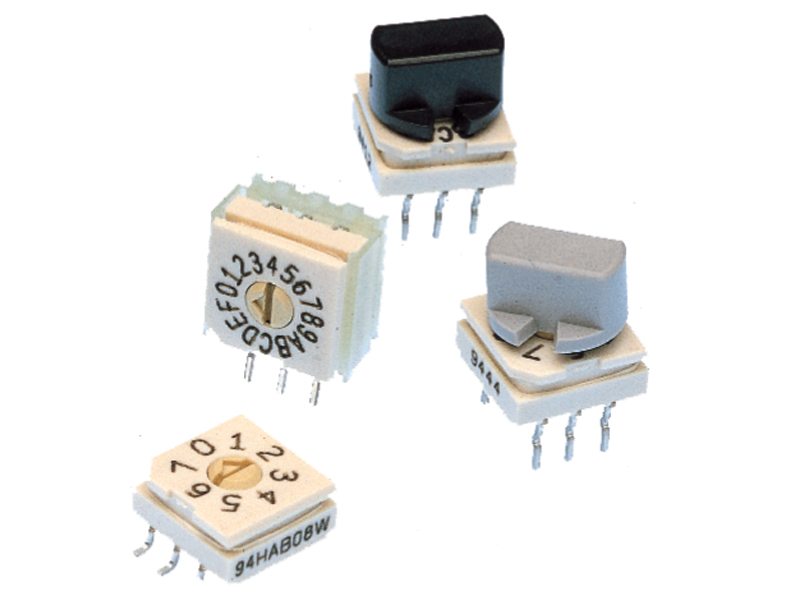

94HCB10RAT - Grayhill
Switch DIP N.O./N.C. SP10T 10 Knob 0.03A 30VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube
Technical Details
| Actuator Length | 4.32mm |
| Actuator Material | Plastic |
| Body Material | Plastic |
| Contact Plating | Gold |
| Contact Resistance | 50mΩ |
| Country of Origin | USA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 10kcycles |
| Height | 10.16mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.20 |
| Introduction Date | 2007-04-30 |
| Lead Free | Lead Free |
| Length | 10.92mm |
| Lifecycle Status | Production |
| Material | Plastic |
| Max Current Rating | 30mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 10kcycles |
| Min Operating Temperature | -40°C |
| Mount | PCB, Through Hole |
| Number of Circuits | 1 |
| Number of Positions | 10 |
| Orientation | Right Angle |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8536509065, 8536509065|8536509065|8536509065|8536509065|8536509065 |
| Switching Voltage | 30V |
| Terminal Pitch | 2.54mm |
| Termination | PC Pins |
| Throw Configuration | SP10T |
| Voltage Rating (DC) | 50V |
| Washable | Yes |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
