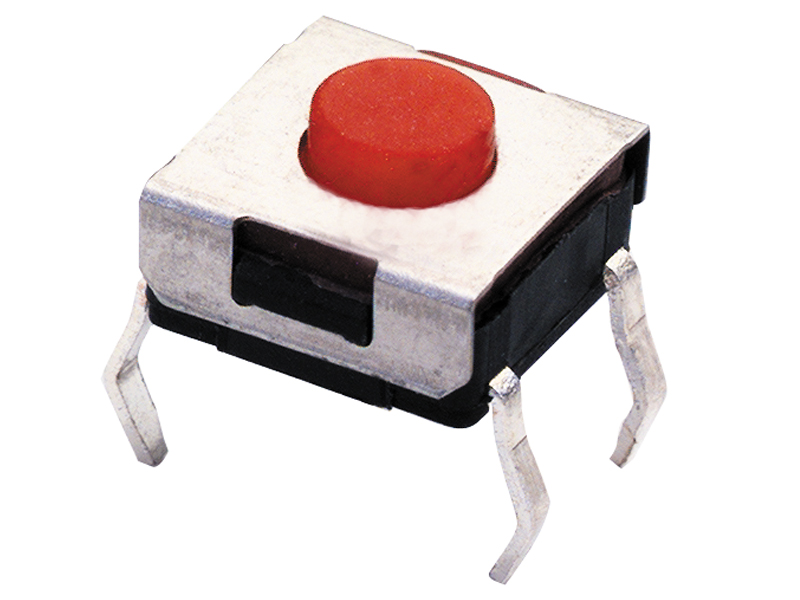

95CW06A1T - Grayhill
Switch Tactile N.O. SPST Round Button PC Pins 0.05A 12VDC 1.57N Thru-Hole Tube
Technical Details
| Actuator Material | Rubber |
| Color | Silver |
| Contact Material | Stainless Steel |
| Contact Plating | Silver |
| Contact Resistance | 100mΩ |
| Country of Origin | Mainland China |
| Depth | 6.2mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| Height | 2.3mm |
| Housing Material | Stainless Steel |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.40 |
| Illumination Type | Non-Illuminated |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2007-05-17 |
| Lead Free | Lead Free |
| Length | 6.3mm |
| Lifecycle Status | Production |
| Max Current Rating | 50mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 12V |
| Mechanical Life | 100kcycles |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Positions | 1 |
| Operating Force | 1.57N |
| Orientation | Straight |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | WATER PROOF |
| Switch Function | Off-Mom |
| Switch Travel | 450µm |
| Terminal Material | Brass |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 12V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
